ASUS M4N78 Pro
Model M4N78 ProPart no. 90-MIB7C0-G0EAY00ZEAN 4719543169773
43 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 1+0, 5, JBOD
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
- PCI Express x1 slots2
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 1+0, 5, JBOD
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- M4N78 Pro
- Part numbers
- 90-MIB7C0-G0EAY00Z, ASUSM4N78PRO, M4N78 PRO, M4N78PRO
- EAN / UPC
- 4719543169773, 610839169771
- Also known as
- ASUS M4N78 Pro Socket AM3 ATX
Specifications
43 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 1+0, 5, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE |
| Controller interface type | SATAII |
| Audio output | VIA1708S |
| Floppy disk drive connector | Yes |
| Graphics controller | GeForce 8300 |
What people say
Reviews & ratings
ASUS M4N78 Pro
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M4N78 Pro

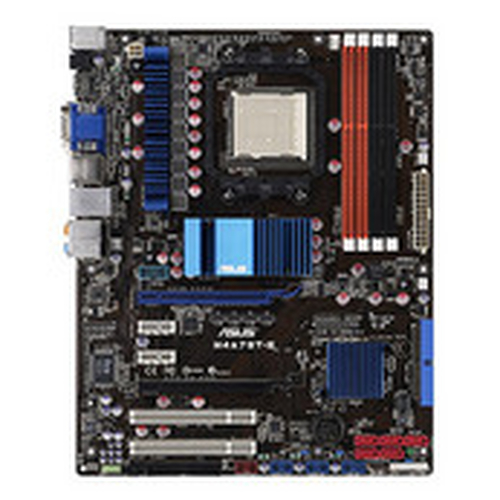

All motherboard comparisons- ASUS M4N78 Pro vsASUS M4A78T-E AMD 790GX Socket AM3 ATXCompare specs

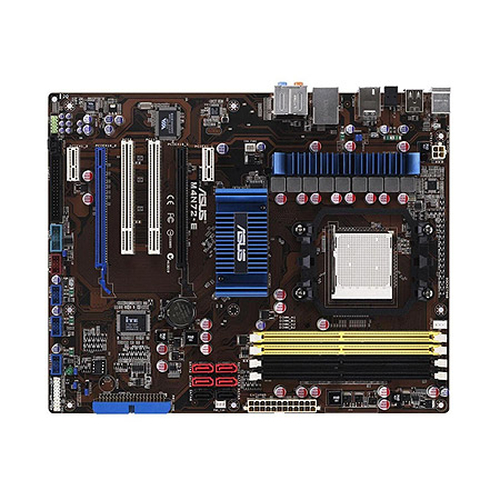

- ASUS M4N78 Pro vsASUS M4N72-E Socket AM2 ATXCompare specs
