ASUS M4N78-AM Socket AM3+ micro ATX

ASUS M4N78-AM Socket AM3+ micro ATX

Model M4N78-AMPart no. 90-MIBA50-G0EAY0GZEAN 610839168576

58 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR2-SDRAM
  • Supported storage drive interfacesIDE, SATA II
  • Maximum graphics card memory512 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR2-SDRAM
Supported storage drive interfaces
IDE, SATA II
Maximum graphics card memory
512 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
M4N78-AM
Part numbers
90-MIBA50-G0EAY0GZ, ASUSM4N78AM, 90-MIB7N0-G0EAY0GZ, M4N78-AM
EAN / UPC
610839168576, 4719543168578, 4719543171363
Also known as
ASUS M4N78-AM Socket AM3+ micro ATX

Specifications

58 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom X3, AMD Phenom X4

Memory

Supported memory typesDDR2-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds667,800,1066 MHz
Maximum internal memory8 GB

Storage controllers

Supported storage drive interfacesIDE, SATA II
RAID levels0, 1, 0+1, 5, JBOD

Graphics

Maximum graphics card memory512 MB

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of SATA connectors4
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes

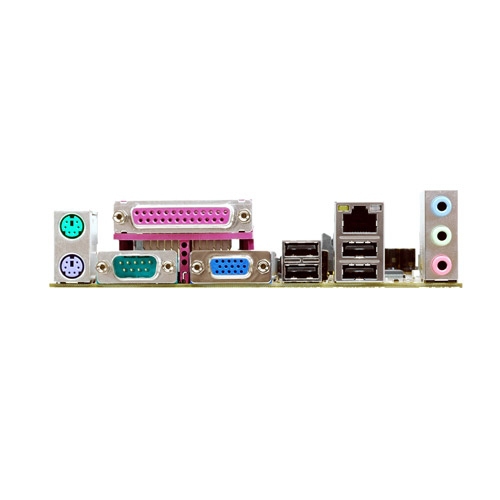

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
COM ports quantity1
Parallel ports quantity1

Network

Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyNVIDIA
Audio chipVIA VT1708S
Audio output channels5.1 channels
Power source typeATX

Expansion slots

PCI Express x16 (Gen 2.x) slots1
PCI slots2

BIOS

BIOS typeAMI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth203 mm

Packaging content

Drivers includedYes

Other features

PCI Express x1 (Gen 1.x) slots1
Controller 2nd interface typeUltraDMA 133/100
Controller interface typeSATA 3 Gb/s
Graphics controllerNVIDIA nForce 8200
