ASUS M4N68T-M LE V2
Model M4N68T-M LE V2Part no. 90-MIBDX0-G0EAY0DZEAN 4719543177150
47 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 5, 10, JBOD
- Maximum graphics card memory256 MB
- USB 2.0 connectors6
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 5, 10, JBOD
- Maximum graphics card memory
- 256 MB
- USB 2.0 connectors
- 6
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- M4N68T-M LE V2
- Part number
- 90-MIBDX0-G0EAY0DZ
- EAN / UPC
- 4719543177150, 5711045074561
- Also known as
- ASUS M4N68T-M LE V2 Socket AM3 micro ATX
Specifications
47 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1800 MHz |
| Maximum internal memory | 16 GB |
| Controller type | 1 |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | No |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | No |
| TPM connector | Yes |

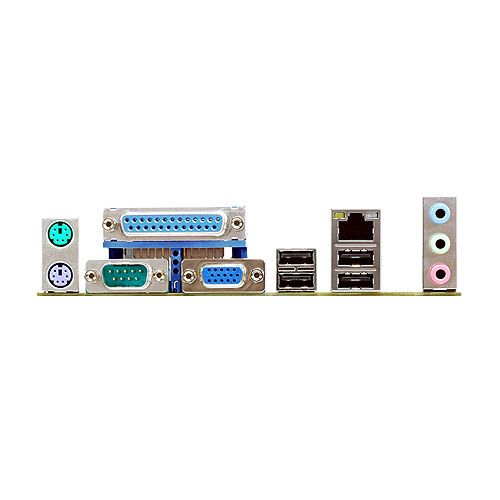

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 208 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| S/PDIF in port | No |
| Floppy disk drive connector | No |
| GAME/MIDI connector | No |
