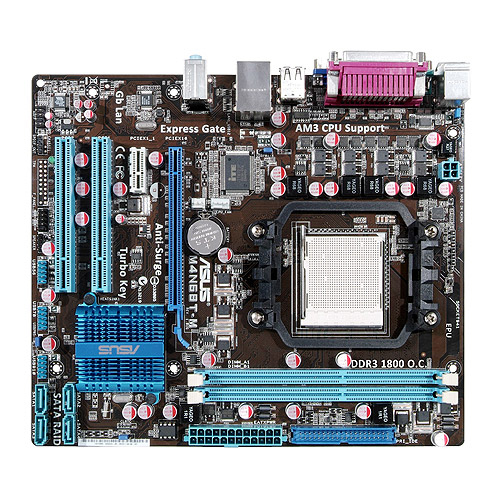

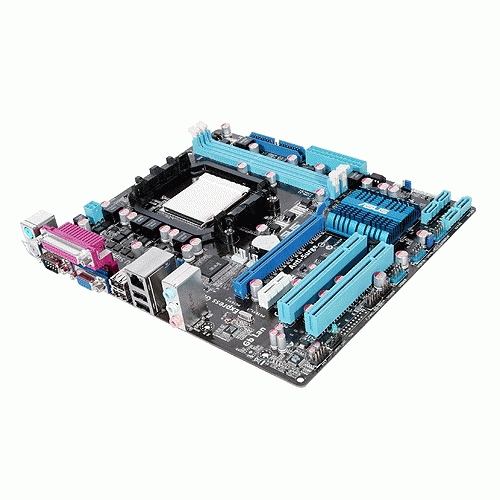

ASUS M4N68T-M Socket AM3 micro ATX
Model M4N68T-MPart no. 90-MIBC20-G0EAY0KZEAN 610839174447
37 specifications
- Processor manufacturerAMD
- Number of memory slots2
- Maximum graphics card memory256 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- Networking features10/100/1000 Mbps
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- Maximum graphics card memory
- 256 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Networking features
- 10/100/1000 Mbps
- Brand
- ASUS
- Category
- Motherboard
- Model
- M4N68T-M
- Part numbers
- 90-MIBC20-G0EAY0KZ, M4N68T-M, 90-MIBC20-G0EAY0WZ
- EAN / UPC
- 610839174447, 5052179466472
- Also known as
- ASUS M4N68T-M Socket AM3 micro ATX
Specifications
37 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |

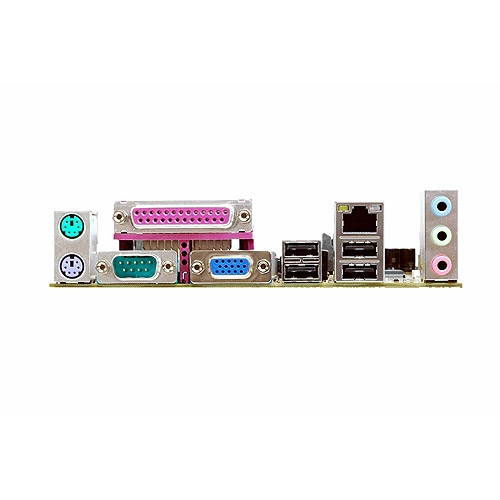

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 208 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
