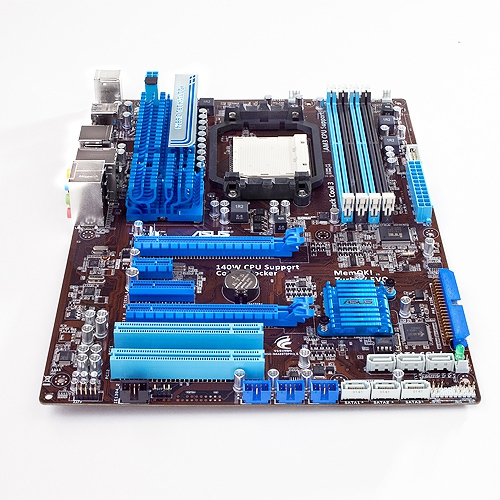

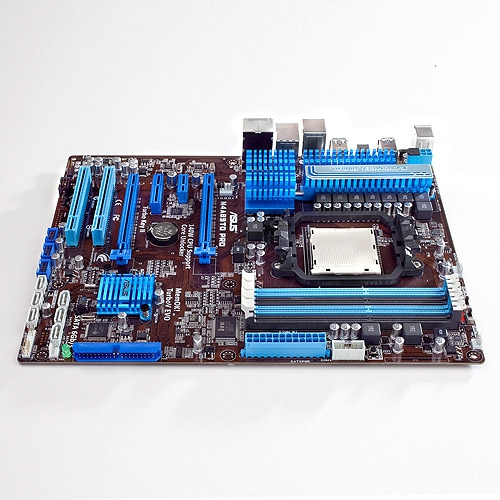

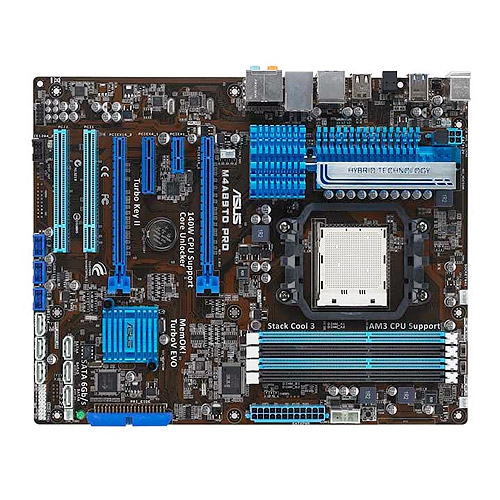

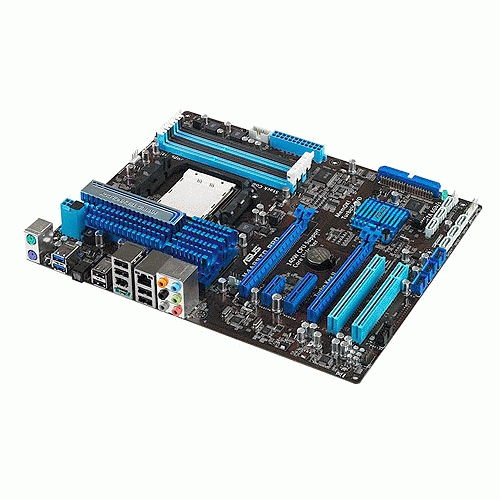

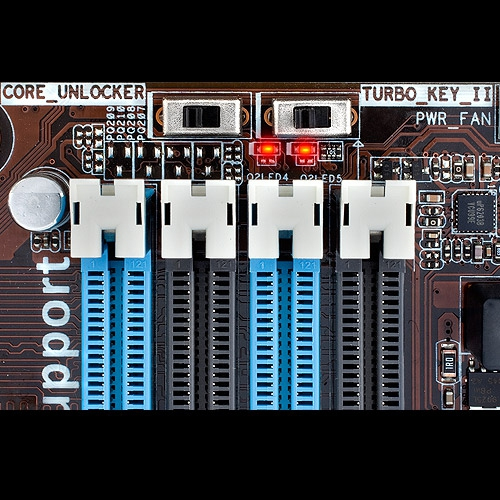

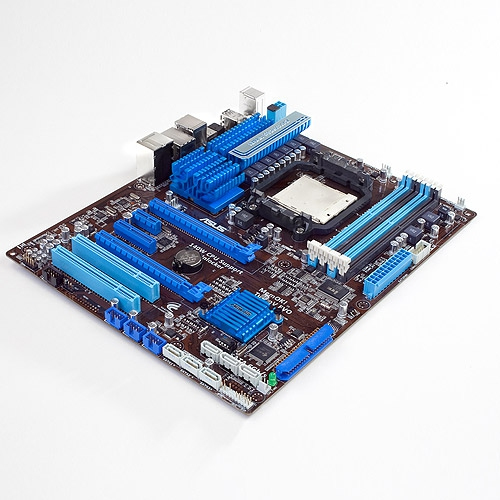

ASUS M4A89TD PRO

ASUS M4A89TD PRO

Model M4A89TD PROPart no. 90-MIBCI0-G0EAY0GZEAN 4719543176085

50 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • USB 2.0 connectors3
  • USB 2.0 ports quantity8
  • LAN controllerRealtek RTL8111E
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10
USB 2.0 connectors
3
USB 2.0 ports quantity
8
LAN controller
Realtek RTL8111E
Brand
ASUS
Category
Motherboard
Model
M4A89TD PRO
Part numbers
90-MIBCI0-G0EAY0GZ, M4A89TD PRO
EAN / UPC
4719543176085
Also known as
ASUS M4A89TD PRO AMD 890FX Socket AM3 ATX

Specifications

50 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3

Memory

Number of memory slots4
ECC сompatibilityECC & Non-ECC
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors3
Number of SATA connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Number of COM connectors1
Number of IEEE1394 connectors1

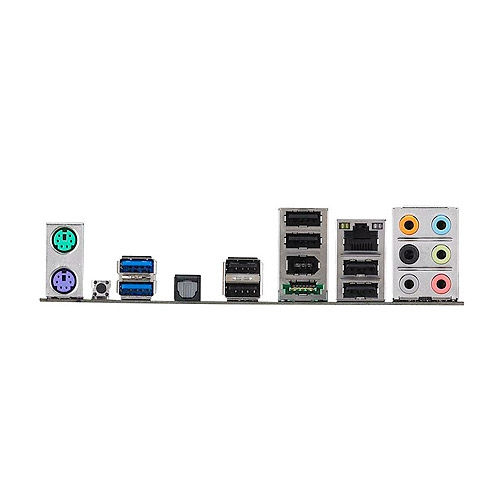

Rear panel I/O ports

USB 2.0 ports quantity8
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity2
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

LAN controllerRealtek RTL8111E
Networking featuresGigabit LAN

Features

Motherboard form factorATX
Motherboard chipsetAMD 890FX
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x4 slots1
PCI Express x16 slots2
PCI slots2

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

Controller 2nd interface typeJMicron JMB361
Controller interface typeSB850
Manageability featuresWfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
