ASUS M4A89GTD PRO/USB3
Model M4A89GTD PRO/USB3Part no. 90-MIBBV5-G0EAY00ZEAN 610839175291
47 specifications
- Processor manufacturerAMD
- Number of memory slots4
- Maximum graphics card memory512 MB
- USB 2.0 connectors8
- LAN controllerRealtek RTL8111E
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 8
- LAN controller
- Realtek RTL8111E
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- M4A89GTD PRO/USB3
- Part number
- 90-MIBBV5-G0EAY00Z
- EAN / UPC
- 610839175291, 4719543175293
- Also known as
- ASUS M4A89GTD PRO/USB3 AMD 890GX Socket AM3 ATX
Specifications
47 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Graphics card | Radeon HD 4290 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 8 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |

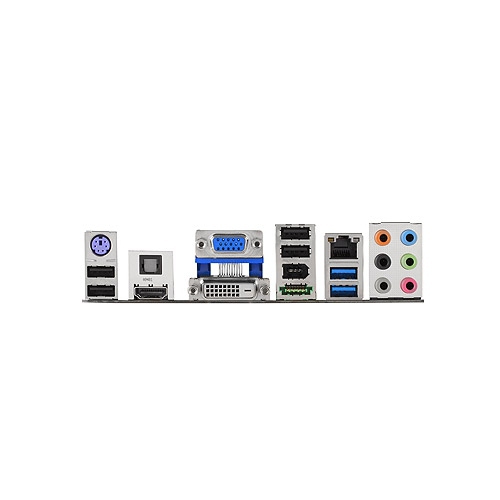

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 890GX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100 |
| Controller interface type | SATA |
| Manageability features | WfM 2.0, DMI 2.0, WOL PME, WOR PME, PXE |
