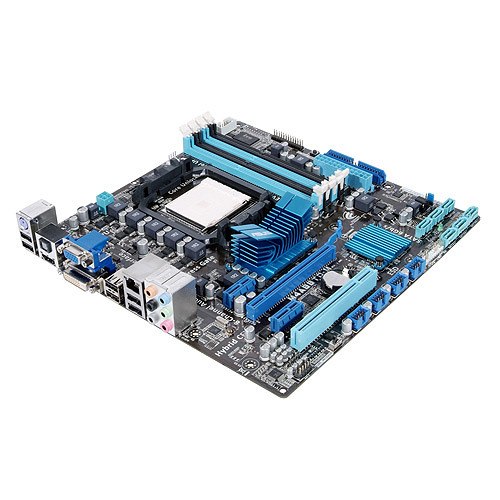

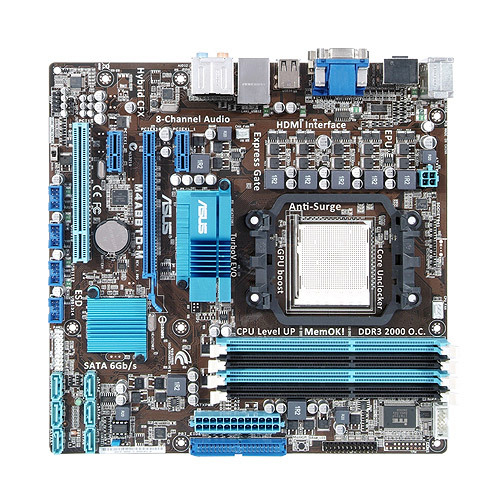

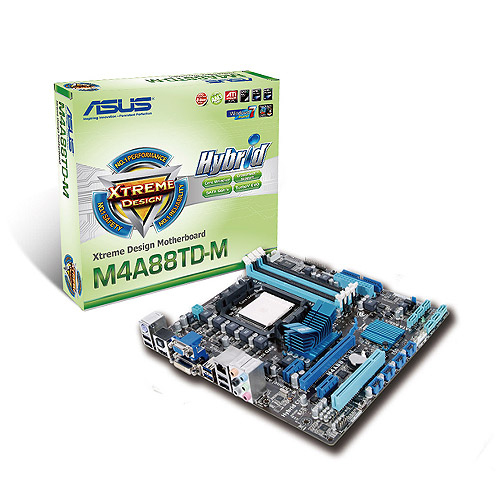

ASUS M4A88TD-M motherboard AMD

ASUS M4A88TD-M motherboard AMD

880G Socket AM3 micro ATX

Model M4A88TD-MEAN 3610170562979

56 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • Maximum graphics card memory1024 MB
  • USB 2.0 ports quantity6
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10
Maximum graphics card memory
1024 MB
USB 2.0 ports quantity
6
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
M4A88TD-M
Part numbers
M4A88TD-M, 90-MIBD90-G0EAY0WZ
EAN / UPC
3610170562979
Also known as
ASUS M4A88TD-M motherboard AMD 880G Socket AM3 micro ATX

Specifications

56 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1024 MB
On-board graphics cardYes
Graphics cardRadeon HD 4250

Internal I/O

USB 2.0 connectors4
Number of SATA III connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1
Parallel connectorYes

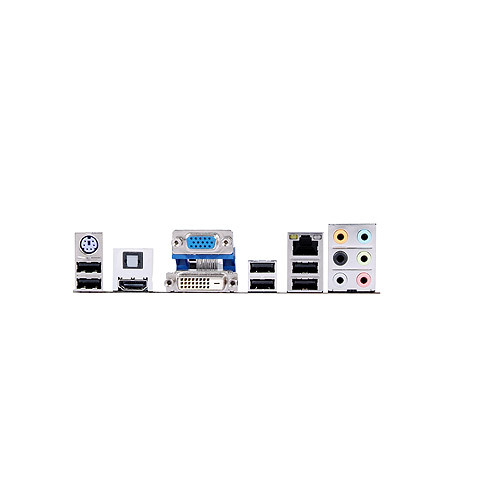

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetAMD 880G
Motherboard southbridgeAMD SB850
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

Manageability featuresWOL PME,WOR PME,WOR Ring,PXE
