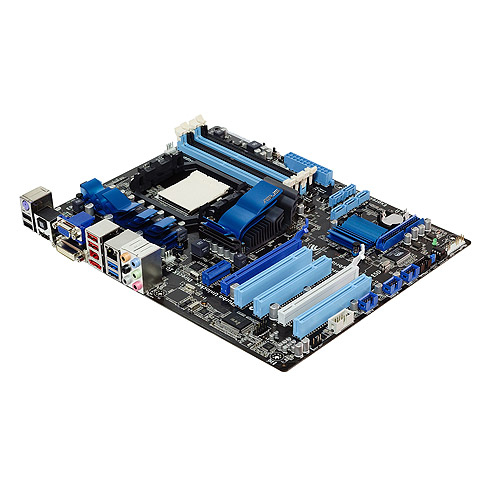

ASUS M4A88T-V EVO

ASUS M4A88T-V EVO

Model M4A88T-V EVO

63 specifications
  • Memory0.125 GB
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 10, JBOD
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors3
See all specifications

Overview

Memory
0.125 GB
Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 10, JBOD
Maximum graphics card memory
1024 MB
USB 2.0 connectors
3
Brand
ASUS
Category
Motherboard
Model
M4A88T-V EVO
Part number
M4A88T-V EVO
Also known as
ASUS M4A88T-V EVO motherboard AMD 880G Socket AM3 ATX

Specifications

63 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II Dual-Core Mobile, AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
Processor system buses supported1066 MHz
System bus rate5.2 GT/s

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Internal memory0.125 GB
Supported memory clock speeds1066,1333,1600,1800 MHz
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 10, JBOD

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology supportHybrid CrossFireX
On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 4250

Internal I/O

USB 2.0 connectors3
Number of SATA connectors5
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Number of COM connectors1
Number of IEEE1394 connectors1

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetAMD 880G
Motherboard southbridgeAMD SB710
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows XP, Vista, 7

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
PCI Express slots version2.0
PCI slots3

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

Dual Link DVIYes
Maximum UDIMM memory16 GB
Manageability featuresWOL by PME, WOR by PME, WOR by Ring, PXE
