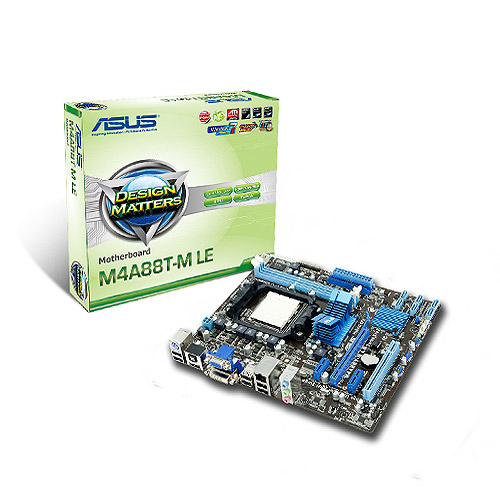

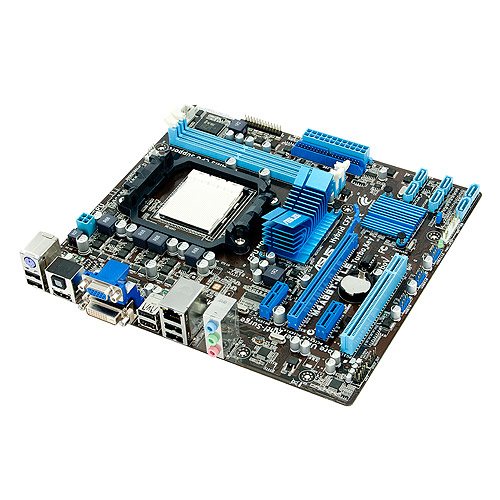

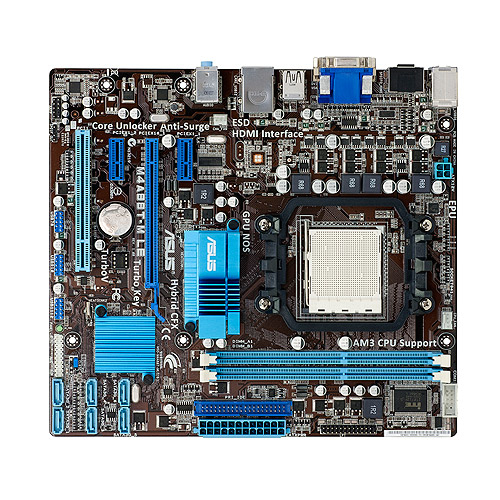

ASUS M4A88T-M LE

ASUS M4A88T-M LE

Model M4A88T-M LE

61 specifications
  • Processor manufacturerAMD
  • Number of memory slots2
  • RAID levels0, 1, 10, JBOD
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
2
RAID levels
0, 1, 10, JBOD
Maximum graphics card memory
1024 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
M4A88T-M LE
Part number
M4A88T-M LE
Also known as
ASUS M4A88T-M LE motherboard AMD 880G Socket AM3 micro ATX

Specifications

61 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
System bus rate5.2 GT/s

Memory

Number of memory slots2
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory8 GB

Storage controllers

RAID levels0, 1, 10, JBOD

Graphics

Maximum graphics card memory1024 MB
On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 4250

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1
Parallel connectorYes

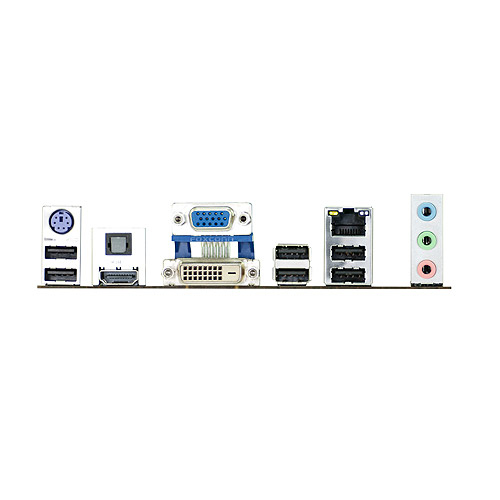

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs3
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8112L
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetAMD 880G
Motherboard southbridgeAMD SB710
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows
CertificationRoHS

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI slots1

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth224 mm

Packaging content

Drivers includedYes

Other features

Manageability featuresWOL PME,WOR PME,WOR Ring,PXE
