ASUS M4A78LT-M LX

ASUS M4A78LT-M LX

Model M4A78LT-M LXEAN 4719543178966

58 specifications
  • Processor manufacturerAMD
  • Number of memory slots2
  • RAID levels0, 1, 10, JBOD
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
2
RAID levels
0, 1, 10, JBOD
Maximum graphics card memory
1024 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
M4A78LT-M LX
Part numbers
M4A78LT-M LX, 90-MIBEW0-G0EAY00Z
EAN / UPC
4719543178966
Also known as
ASUS M4A78LT-M LX motherboard AMD 760G Socket AM3 micro ATX

Specifications

58 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6

Memory

Number of memory slots2
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory8 GB

Storage controllers

RAID levels0, 1, 10, JBOD

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology supportHybrid CrossFireX
On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon 3000

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes

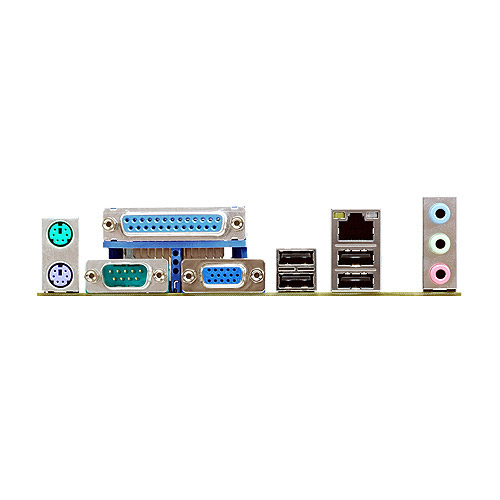

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
COM ports quantity1
Parallel ports quantity1

Network

Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetAMD 760G
Motherboard southbridgeAMD SB710
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI slots1

BIOS

BIOS typeAMI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth203 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Controller interface typeSATA 3.0 Gb/s
Quick installation guideYes
