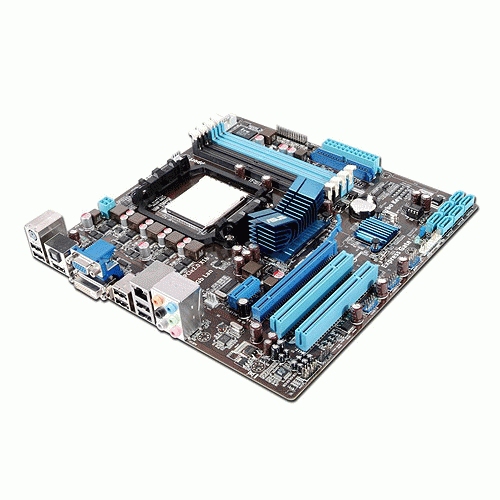

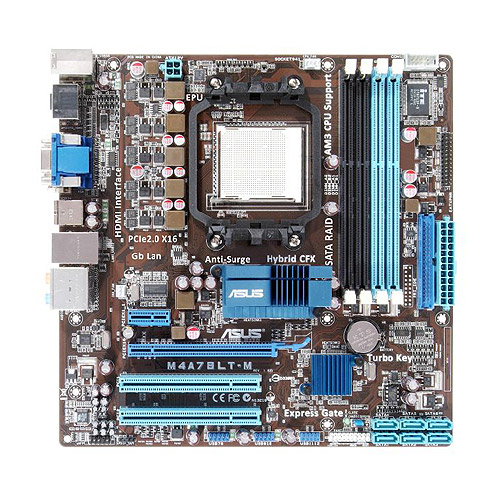

ASUS M4A78LT-M Socket AM3 micro ATX
Model M4A78LT-MPart no. 90-MIBBJ0-G0EAY00ZEAN 4719543174739
35 specifications
- Processor manufacturerAMD
- Number of memory slots4
- On-board graphics cardYes
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8112L
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- On-board graphics card
- Yes
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8112L
- Brand
- ASUS
- Category
- Motherboard
- Model
- M4A78LT-M
- Part numbers
- 90-MIBBJ0-G0EAY00Z, 90-MIBBJ0-G0EAY0WZ, M4A78LT-M
- EAN / UPC
- 4719543174739, 5052179519055
- Also known as
- ASUS M4A78LT-M Socket AM3 micro ATX
Specifications
35 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card | Radeon HD 3000 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |

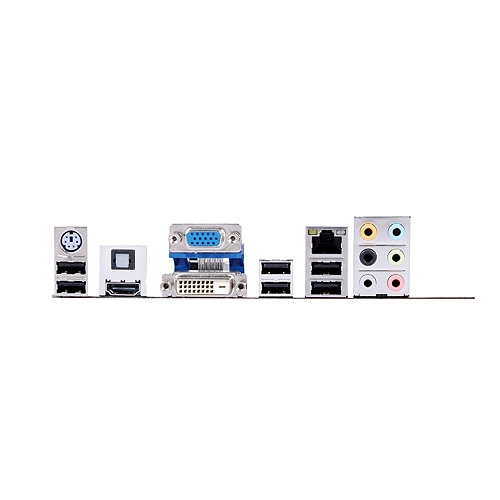

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8112L |
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
