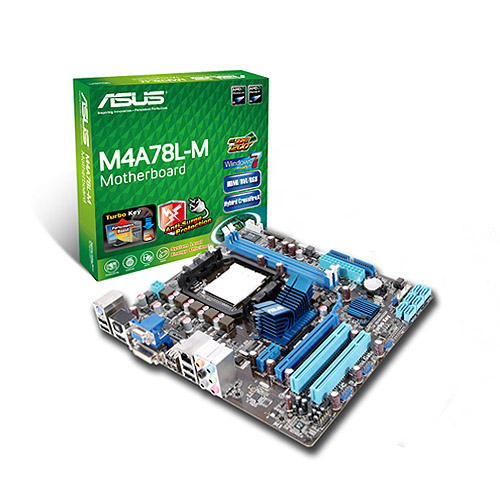

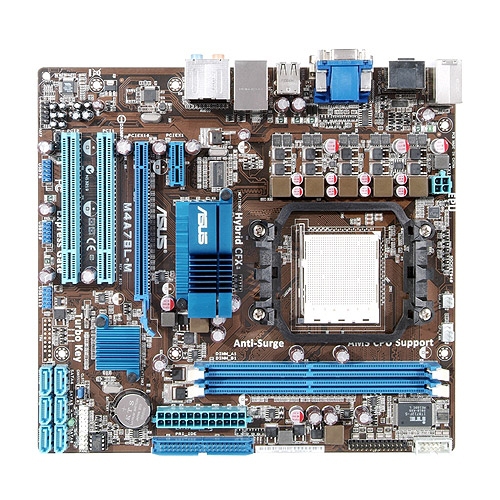

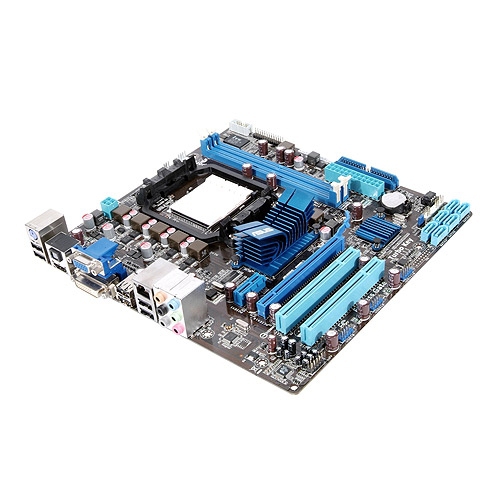

ASUS M4A78L-M Socket AM3 micro ATX
Model M4A78L-MPart no. 90-MIBB70-G0EAY00ZEAN 4719543173268
34 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 0+1, JBOD
- Maximum graphics card memory1024 MB
- USB 2.0 connectors6
- LAN controllerRealtek RTL8112L
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1, JBOD
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 6
- LAN controller
- Realtek RTL8112L
- Brand
- ASUS
- Category
- Motherboard
- Model
- M4A78L-M
- Part numbers
- 90-MIBB70-G0EAY00Z, M4A78L-M
- EAN / UPC
- 4719543173268
- Also known as
- ASUS M4A78L-M Socket AM3 micro ATX
Specifications
34 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

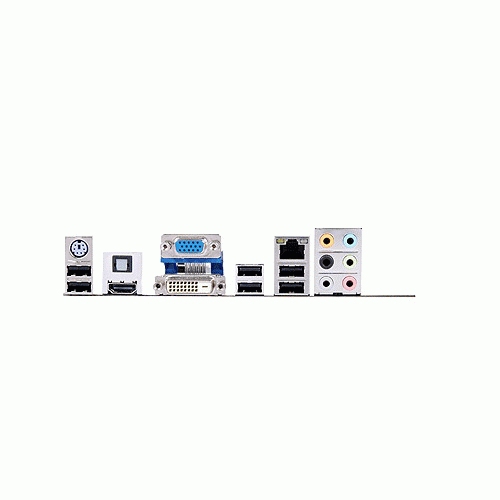

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8112L |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 224 mm |
Other features
| Specification | Value |
|---|---|
| Graphics controller | ATI Radeon HD3000 |
What people say
Reviews & ratings
ASUS M4A78L-M Socket AM3 micro ATX
No reviews yet
Be the first to tell others how ASUS M4A78L-M Socket AM3 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M4A78L-M Socket AM3 micro ATX
All motherboard comparisons- ASUS M4A78L-M Socket AM3 micro ATX vsASUS P7P55D-E PremiumCompare specs
- ASUS M4A78L-M Socket AM3 micro ATX vsASUS P7P55D-E Intel® P55 LGA 1156 (Socket H) ATXCompare specs
- ASUS M4A78L-M Socket AM3 micro ATX vsASUS P7P55-M motherboard Intel® P55 LGA 1156 (Socket H) micro ATXCompare specs

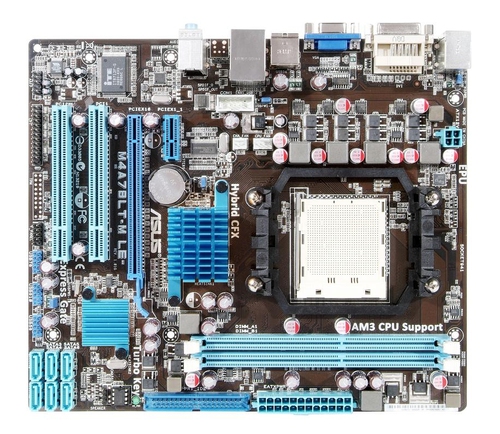

- ASUS M4A78L-M Socket AM3 micro ATX vsASUS M4A78LT-M LECompare specs

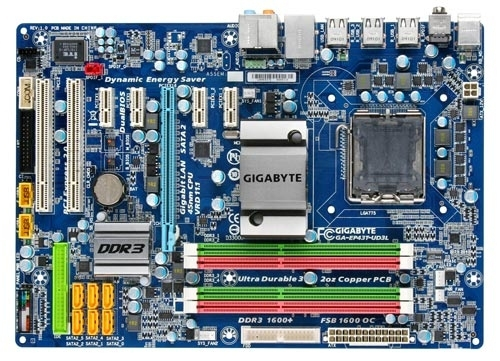

- ASUS M4A78L-M Socket AM3 micro ATX vsGIGABYTE GA-EP43T-UD3L motherboard LGA 775 (Socket T) ATXCompare specs

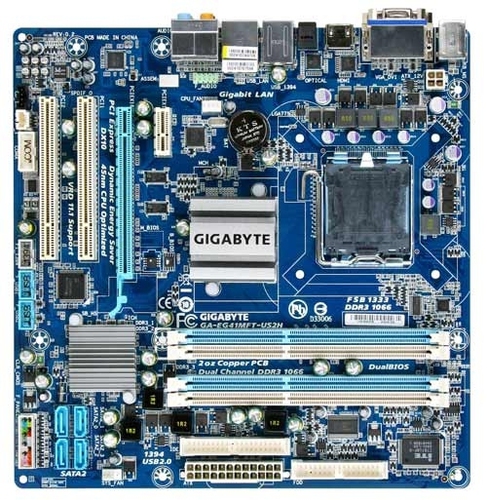

- ASUS M4A78L-M Socket AM3 micro ATX vsGIGABYTE GA-EG41MFT-US2H motherboard LGA 775 (Socket T) micro ATXCompare specs

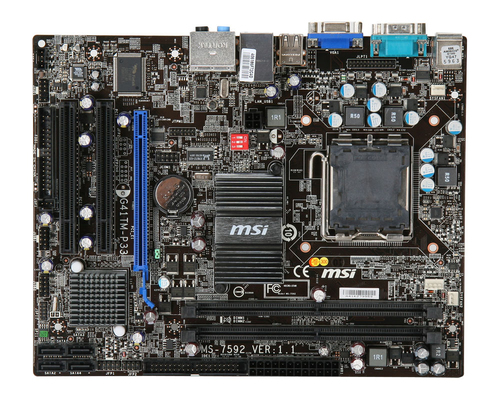

- ASUS M4A78L-M Socket AM3 micro ATX vsMSI G41TM-P33 motherboard LGA 775 (Socket T) micro ATXCompare specs

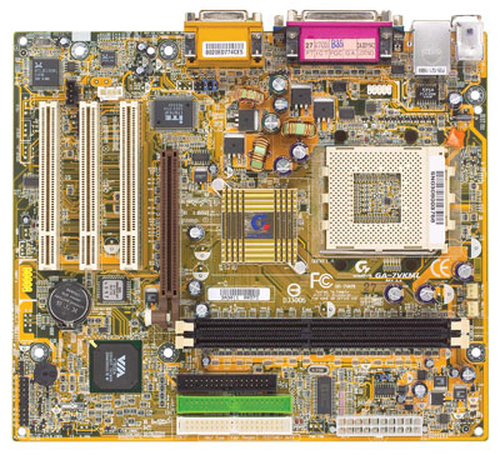

- ASUS M4A78L-M Socket AM3 micro ATX vsGIGABYTE GA-7VKML motherboard Socket A (462) micro ATXCompare specs
