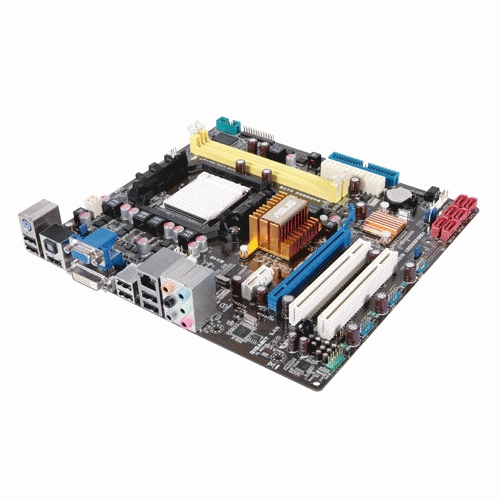

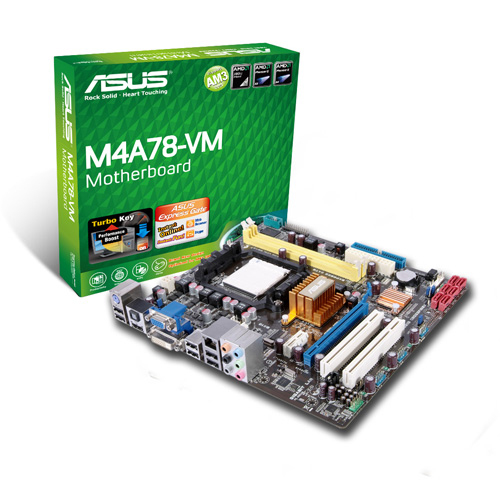

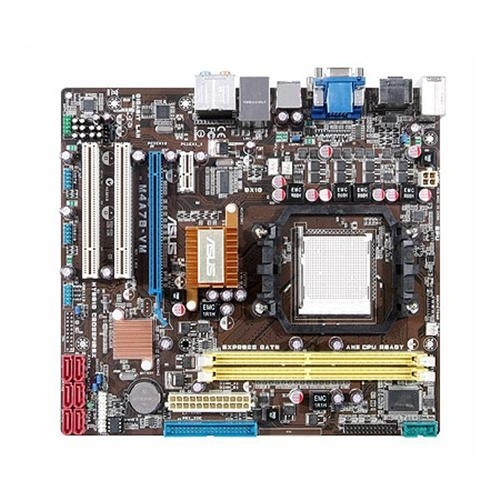

ASUS M4A78-VM AMD

ASUS M4A78-VM AMD

780G Socket AM2 micro ATX

Model M4A78-VMPart no. 90-MIB7Q0-G0EAY0KZEAN 4719543170755

50 specifications
  • Processor manufacturerAMD
  • Number of memory slots2
  • RAID levels0, 1, 0+1
  • Maximum graphics card memory256 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
2
RAID levels
0, 1, 0+1
Maximum graphics card memory
256 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
M4A78-VM
Part numbers
90-MIB7Q0-G0EAY0KZ, M4A78-VM, 90-MIB9G0-G0ECY0GZ
EAN / UPC
4719543170755, 4719543169971, 610839169979
Also known as
ASUS M4A78-VM AMD 780G Socket AM2 micro ATX

Specifications

50 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM2
Compatible processor seriesAMD Phenom X3, AMD Phenom X4

Memory

Number of memory slots2
ECC сompatibilityECC & Non-ECC
Maximum internal memory8 GB

Storage controllers

RAID levels0, 1, 0+1

Graphics

Maximum graphics card memory256 MB

Internal I/O

USB 2.0 connectors3
Number of SATA connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of COM connectors1

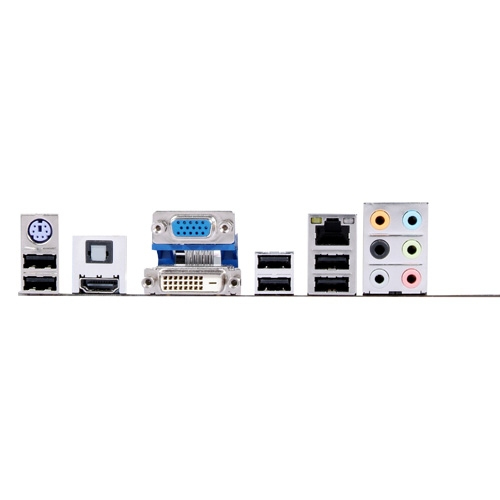

Rear panel I/O ports

USB 2.0 ports quantity6
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Networking featuresGigabit Ethernet

Features

Motherboard form factormicro ATX
Motherboard chipsetAMD 780G
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots2

BIOS

BIOS typeAMI
BIOS memory size64 Mbit

Weight & dimensions

Width244 mm
Depth224 mm

Packaging content

Drivers includedYes
Bundled software- ASUS PC Probe II - ASUS LiveUpdate Utility

Other features

Controller 2nd interface typeUltraDMA 133/100
Controller interface typeSATA 3 Gb/s
Graphics controllerATI Radeon HD3200
