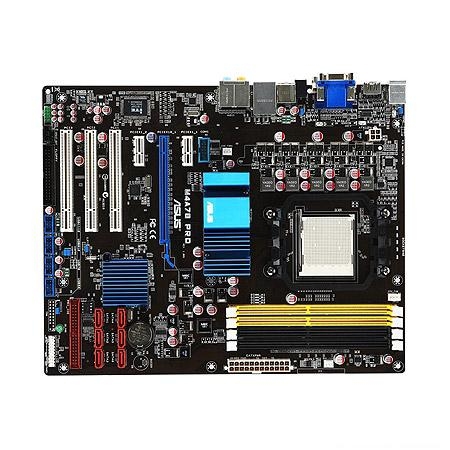

ASUS M4A78 PRO
Model M4A78 PROPart no. 90-MIB770-G0EAY00ZEAN 4719543169070
50 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 10, JBOD
- Maximum graphics card memory512 MB
- LAN controllerAtheros L1E
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10, JBOD
- Maximum graphics card memory
- 512 MB
- LAN controller
- Atheros L1E
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- M4A78 PRO
- Part numbers
- 90-MIB770-G0EAY00Z, M4A78 PRO, M4A78-PRO
- EAN / UPC
- 4719543169070, 610839169078
- Also known as
- ASUS M4A78 PRO AMD 780G Socket AM2 ATX
Specifications
50 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Graphics card | Radeon HD 3200 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

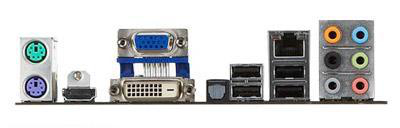

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Atheros L1E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 780G |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66 |
| Controller interface type | SATA |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
ASUS M4A78 PRO
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M4A78 PRO
All motherboard comparisons- ASUS M4A78 PRO vsASUS P5Q SE/R/C/SICompare specs
- ASUS M4A78 PRO vsASUS M4A79T DeluxeCompare specs

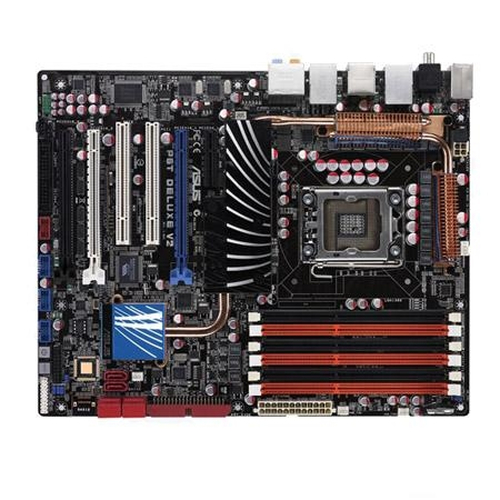

- ASUS M4A78 PRO vsASUS P6T Deluxe V2Compare specs

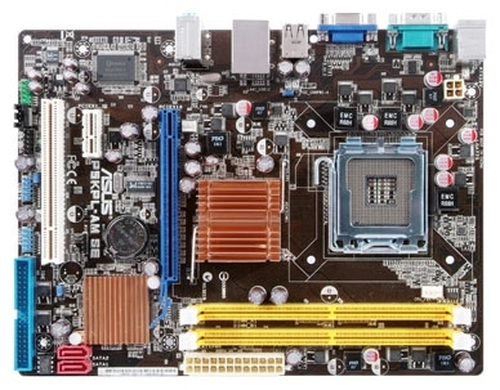

- ASUS M4A78 PRO vsASUS P5KPL-AM SE/C/SICompare specs

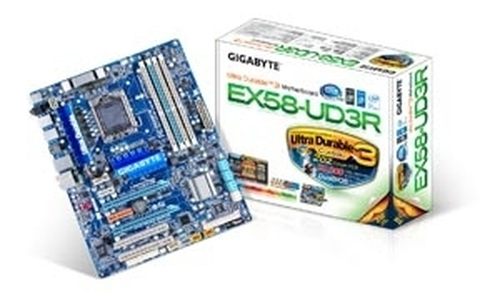

- ASUS M4A78 PRO vsGIGABYTE GA-EX58-UD3R ATX LGA1366 DDR3Compare specs

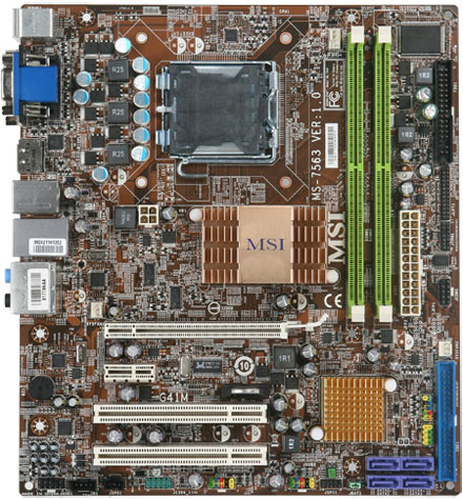

- ASUS M4A78 PRO vsMSI G41M2-FD LGA 775 (Socket T) micro ATXCompare specs

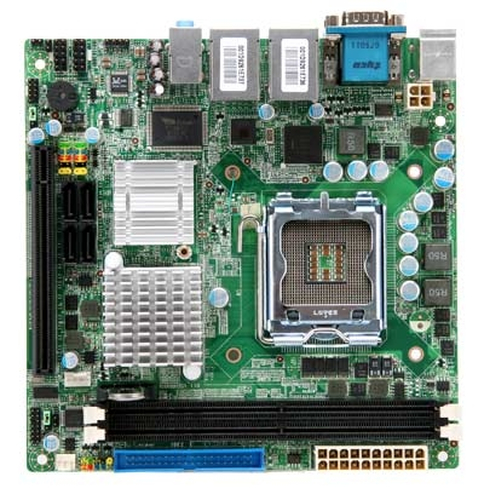

- ASUS M4A78 PRO vsMSI IM-Q35 LGA 775 (Socket T) mini ITXCompare specs
