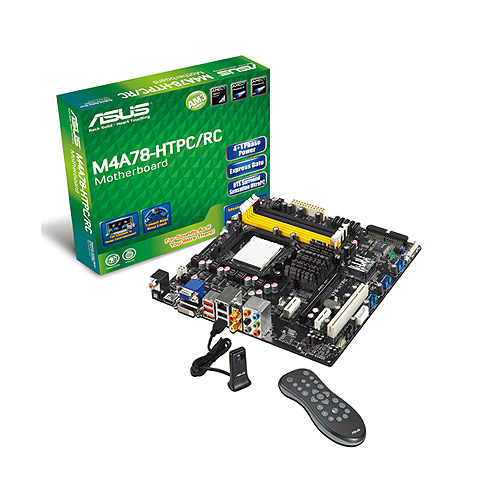

ASUS M4A78-HTPC/RC AMD

ASUS M4A78-HTPC/RC AMD

780G Socket AM3 micro ATX

Model M4A78-HTPC/RCPart no. 90-MIB7T2-G0EAY00ZEAN 4719543170656

62 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR2-SDRAM
  • Supported storage drive interfacesIDE, SATA II
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR2-SDRAM
Supported storage drive interfaces
IDE, SATA II
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
M4A78-HTPC/RC
Part numbers
90-MIB7T2-G0EAY00Z, M4A78-HTPC/RC
EAN / UPC
4719543170656
Also known as
ASUS M4A78-HTPC/RC AMD 780G Socket AM3 micro ATX

Specifications

62 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom
System bus rate5.2 GT/s

Memory

Supported memory typesDDR2-SDRAM
Number of memory slots4
Memory slots typeSO-DIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds667,800,1066 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesIDE, SATA II
RAID levels0, 1, 0+1

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors5
Number of SATA connectors5
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerAtheros L1E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 780G
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI slots1

BIOS

BIOS typeAMI
BIOS memory size64 Mbit
ACPI version2.0

Weight & dimensions

Width244 mm
Depth244 mm

Other features

Controller 2nd interface typeIDE
Controller interface typeSATA
Graphics controllerRadeon HD 3200
