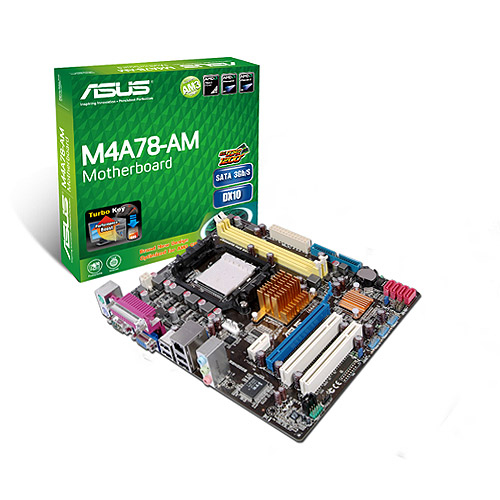

ASUS M4A78-AM AMD

ASUS M4A78-AM AMD

780G Socket AM3 micro ATX

Model M4A78-AMPart no. 90-MIB9B0-G0EAY00ZEAN 4719543170571

62 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR2-SDRAM
  • Supported storage drive interfacesIDE, SATA II
  • Maximum graphics card memory256 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR2-SDRAM
Supported storage drive interfaces
IDE, SATA II
Maximum graphics card memory
256 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
M4A78-AM
Part numbers
90-MIB9B0-G0EAY00Z, M4A78-AM
EAN / UPC
4719543170571
Also known as
ASUS M4A78-AM AMD 780G Socket AM3 micro ATX

Specifications

62 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom
System bus rate5.2 GT/s

Memory

Supported memory typesDDR2-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds667,800,1066 MHz
Maximum internal memory8 GB

Storage controllers

Supported storage drive interfacesIDE, SATA II
RAID levels0, 1, 1+0, JBOD

Graphics

Maximum graphics card memory256 MB

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of SATA connectors4
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs3
Microphone inYes
COM ports quantity1
Parallel ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 780G
Audio output channels5.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots2

BIOS

BIOS typeAMI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth208 mm

Other features

Controller 2nd interface typeIDE
Controller interface typeSATA
Audio outputVT1708S
Graphics controllerRadeon HD3200
