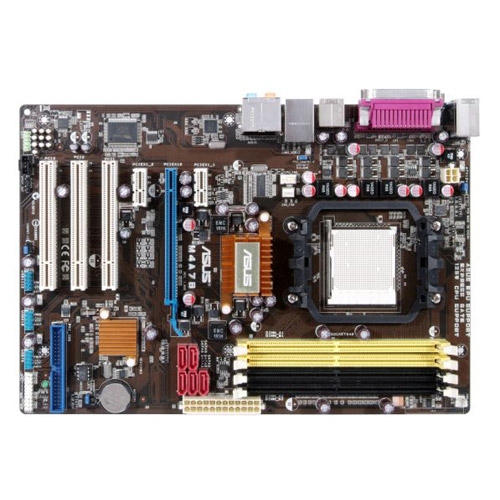

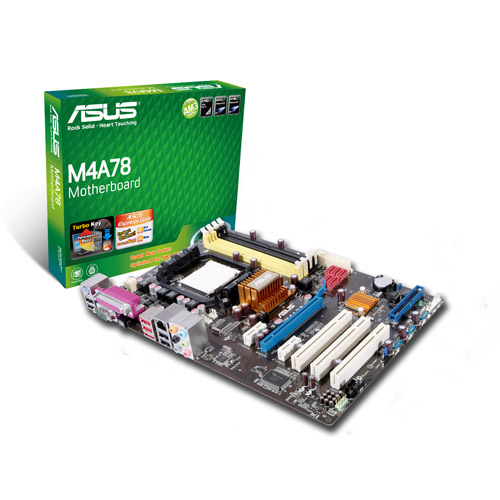

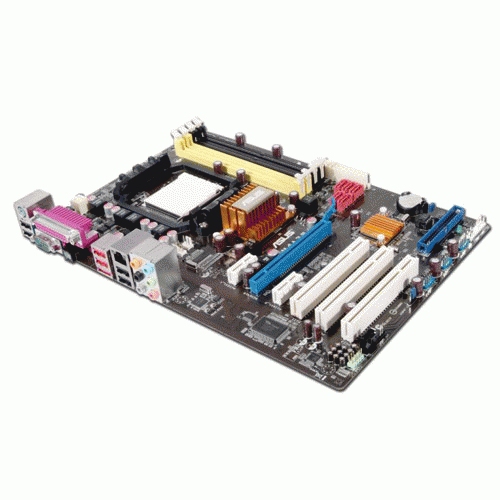

ASUS M4A78 motherboard AMD 770 Socket AM2 ATX
Model M4A78EAN 4719543169445
48 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1, JBOD
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Networking featuresGigabit Ethernet
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, JBOD
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Networking features
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- M4A78
- Part numbers
- M4A78, 90-MIB800-G0EAY0GZ, 90-MIB800-G0EAY00Z
- EAN / UPC
- 4719543169445, 2001705977008, 610839169443
- Also known as
- ASUS M4A78 motherboard AMD 770 Socket AM2 ATX
Specifications
48 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Compatible processor series | AMD Phenom X3, AMD Phenom X4 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 5 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |

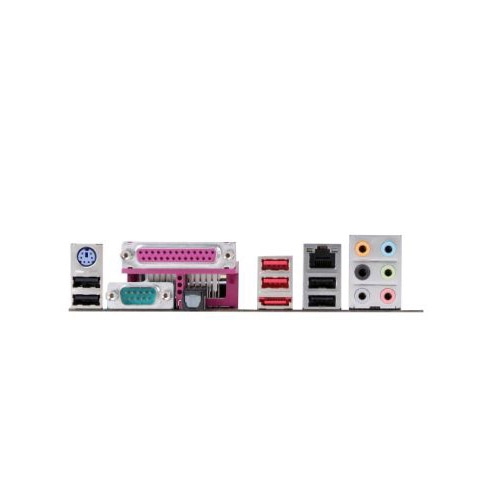

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 306 mm |
| Depth | 209 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | - ASUS PC Probe II - ASUS Update |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100 |
| Controller interface type | SATA 3 Gb/s |
What people say
Reviews & ratings
ASUS M4A78 motherboard AMD 770 Socket AM2 ATX
No reviews yet
Be the first to tell others how ASUS M4A78 motherboard AMD 770 Socket AM2 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M4A78 motherboard AMD 770 Socket AM2 ATX

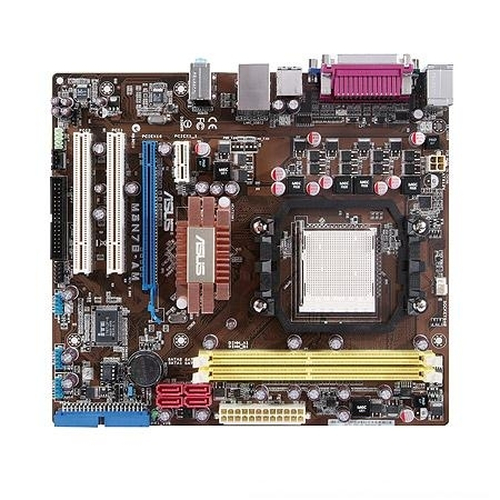

All motherboard comparisons- ASUS M4A78 motherboard AMD 770 Socket AM2 ATX vsASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATXCompare specs

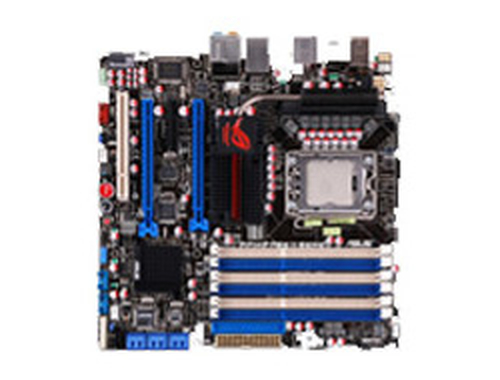

- ASUS M4A78 motherboard AMD 770 Socket AM2 ATX vsASUS Rampage II GENECompare specs

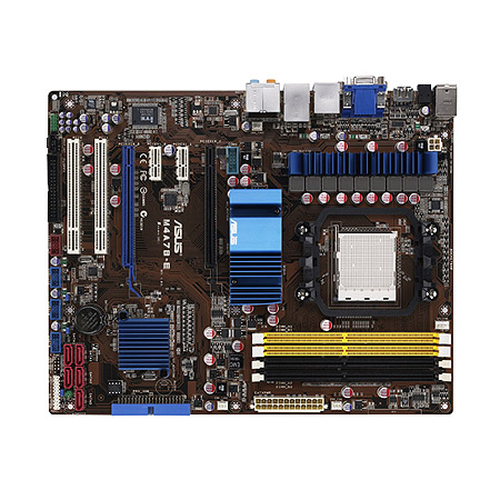

- ASUS M4A78 motherboard AMD 770 Socket AM2 ATX vsASUS M4A78-E AMD 790GX Socket AM3+ ATXCompare specs
