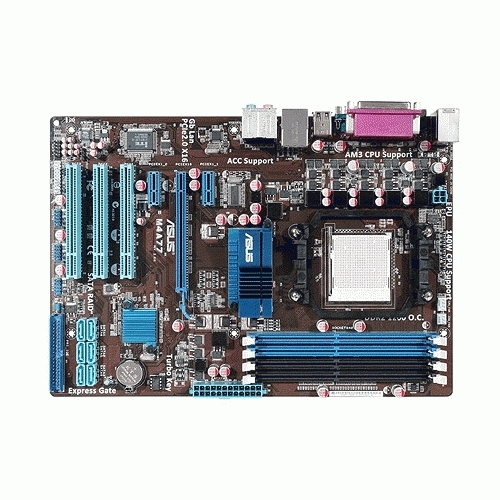

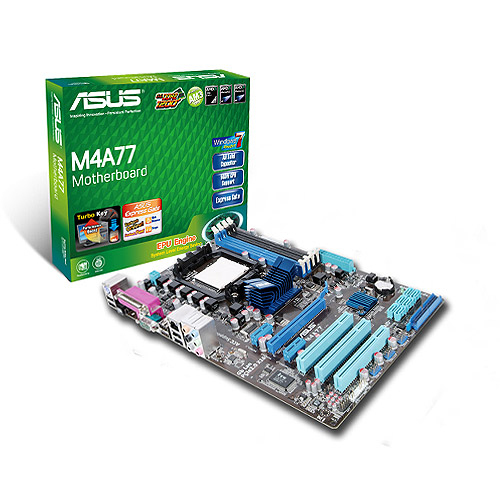

ASUS M4A77 AMD 770 Socket AM3 ATX
Model M4A77Part no. 90-MIBBL0-G0EAY0GZEAN 1778543173800
38 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1, JBOD
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8112L
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, JBOD
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8112L
- Brand
- ASUS
- Category
- Motherboard
- Model
- M4A77
- Part numbers
- 90-MIBBL0-G0EAY0GZ, M4A77
- EAN / UPC
- 1778543173800, 4719543173800
- Also known as
- ASUS M4A77 AMD 770 Socket AM3 ATX
Specifications
38 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |

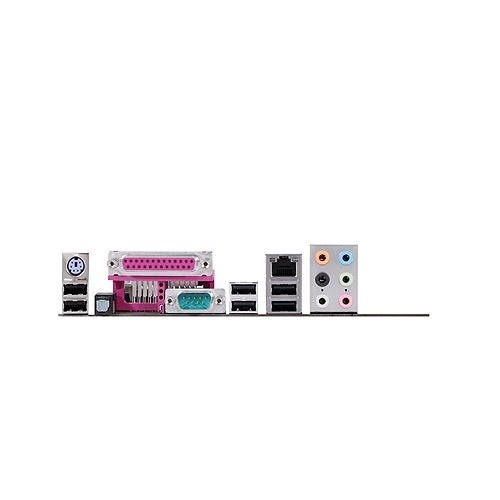

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8112L |
| Networking features | Gigabit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | VIA VT1818S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 306 mm |
| Depth | 214 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
What people say
Reviews & ratings
ASUS M4A77 AMD 770 Socket AM3 ATX
No reviews yet
Be the first to tell others how ASUS M4A77 AMD 770 Socket AM3 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M4A77 AMD 770 Socket AM3 ATX
All motherboard comparisons- ASUS M4A77 AMD 770 Socket AM3 ATX vsASUS P7H55-M PROCompare specs
- ASUS M4A77 AMD 770 Socket AM3 ATX vsASUS P5G41T-M LXCompare specs

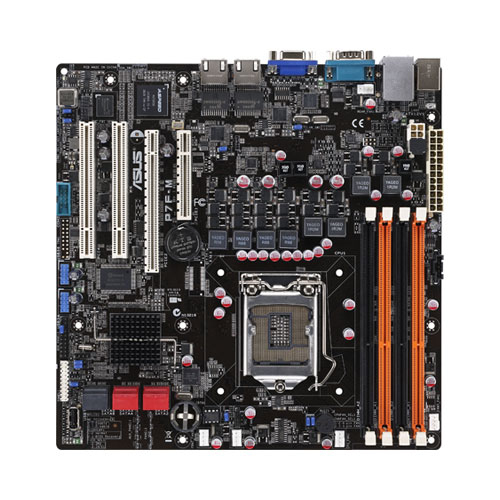

- ASUS M4A77 AMD 770 Socket AM3 ATX vsASUS P7F-M Intel® 3420 LGA 1156 (Socket H) micro ATXCompare specs

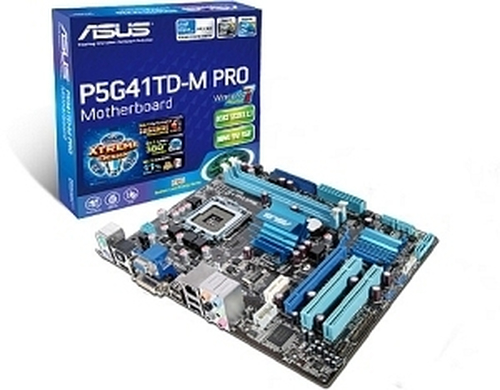

- ASUS M4A77 AMD 770 Socket AM3 ATX vsASUS P5G41TD-M PROCompare specs
