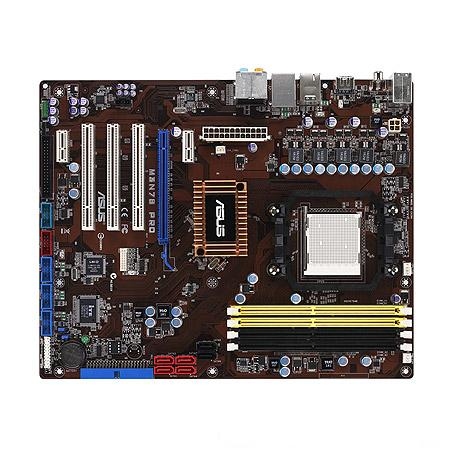

ASUS M3N78 PRO
Model M3N78 PROPart no. 90-MIB5E0-G0EAY00ZEAN 610839163656
49 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1, 5, JBOD
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8211CL
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, 5, JBOD
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8211CL
- Brand
- ASUS
- Category
- Motherboard
- Model
- M3N78 PRO
- Part numbers
- 90-MIB5E0-G0EAY00Z, M3N78 PRO, 90-MIB5E0-G0AAY00Z
- EAN / UPC
- 610839163656, 4719543163658
- Also known as
- ASUS M3N78 PRO Socket AM2 ATX
Specifications
49 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |

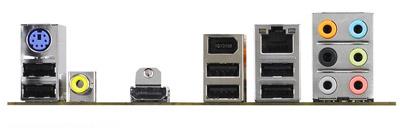

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8211CL |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista, Windows XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Express Gate Lite, ASUS PC Probe II ASUS Update, ASUS AI Suite, Anti-virus software (OEM) |
Other features
| Specification | Value |
|---|---|
| Controller interface type | NVIDIA GeForce 8300 |
| Floppy disk drive connector | Yes |
| Graphics controller | NVIDIA GeForce 8 |
| Special features | - D-Sub module - HDMI to DVI |
| I/O ports | 1 x VGA connector |
What people say
Reviews & ratings
ASUS M3N78 PRO
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M3N78 PRO

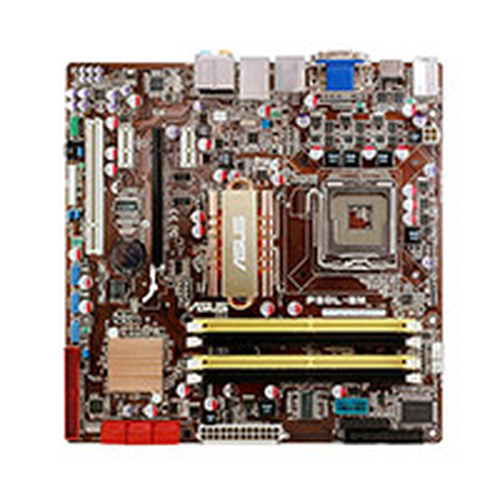

All motherboard comparisons- ASUS M3N78 PRO vsASUS P5QL-EM motherboard LGA 775 (Socket T) micro ATXCompare specs

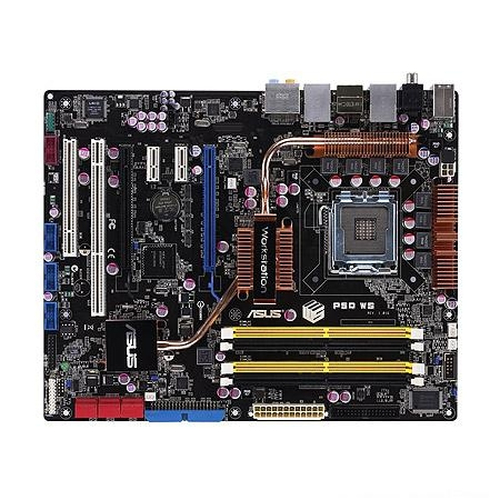

- ASUS M3N78 PRO vsASUS P5Q WSCompare specs

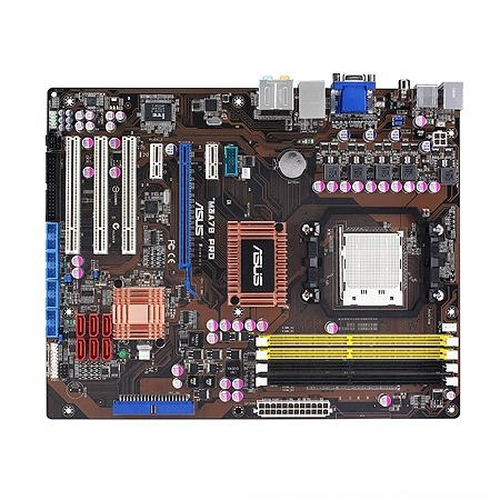

- ASUS M3N78 PRO vsASUS M3A78 PROCompare specs
