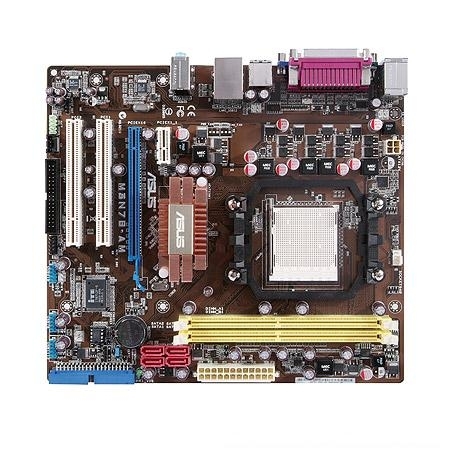

ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX
Model M3N78-AM/C/SI
45 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 0+1, 5, JBOD
- Maximum graphics card memory512 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1, 5, JBOD
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- ASUS
- Category
- Motherboard
- Model
- M3N78-AM/C/SI
- Part number
- M3N78-AM/C/SI
- Also known as
- ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX
Specifications
45 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8211CL |
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 218 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | NVIDIA GeForce |
| Manageability features | DMI v2.0, Wfm2.0, ACPI v2.0A, smbios V2.5, CrashFree BIOS 3, EZ FLASH 2, My logo2(256 color) |
What people say
Reviews & ratings
ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX
No reviews yet
Be the first to tell others how ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX
All motherboard comparisons- ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX vsASUS Rampage II GENECompare specs

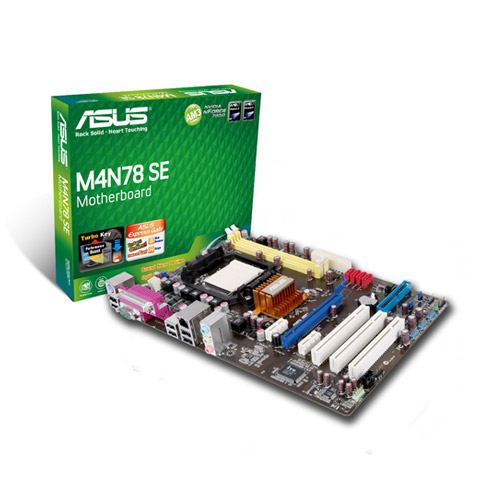

- ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX vsASUS M4N78 SECompare specs
- ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX vsASUS M4A78 motherboard AMD 770 Socket AM2 ATXCompare specs
- ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX vsASUS M4A78-E AMD 790GX Socket AM3+ ATXCompare specs

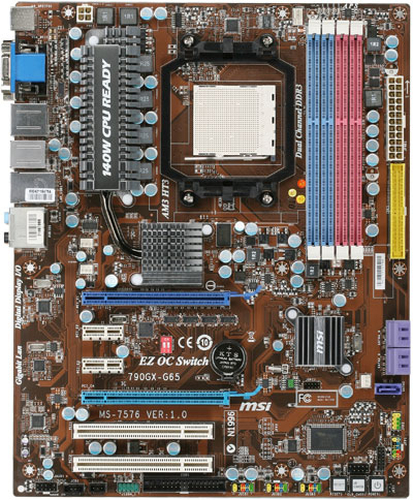

- ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX vsMSI 790GX-G65 AMD 790GX Socket AM3 ATXCompare specs

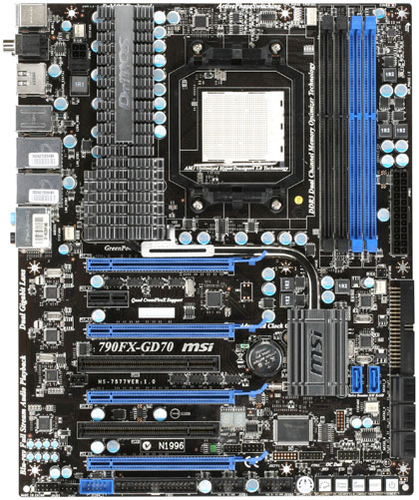

- ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX vsMSI 790FX-GD70 Socket AM3 ATXCompare specs

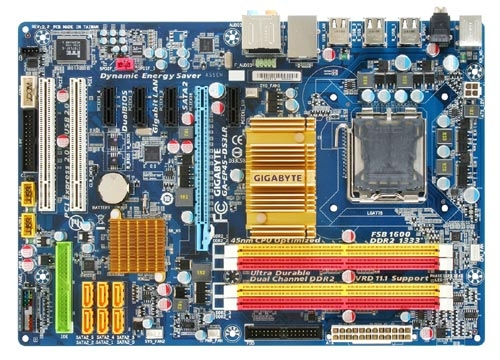

- ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX vsGIGABYTE GA-EP45-DS3LR motherboard LGA 775 (Socket T) ATXCompare specs

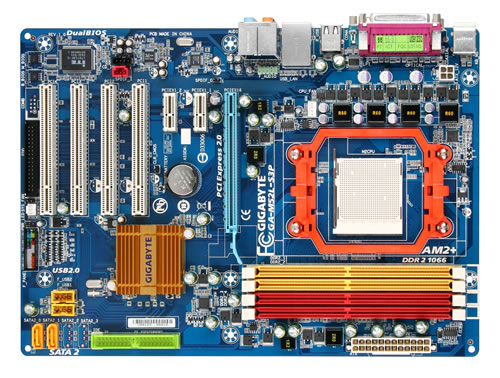

- ASUS M3N78-AM/C/SI motherboard Socket AM2 micro ATX vsGIGABYTE GA-M52L-S3P Socket AM2 ATXCompare specs
