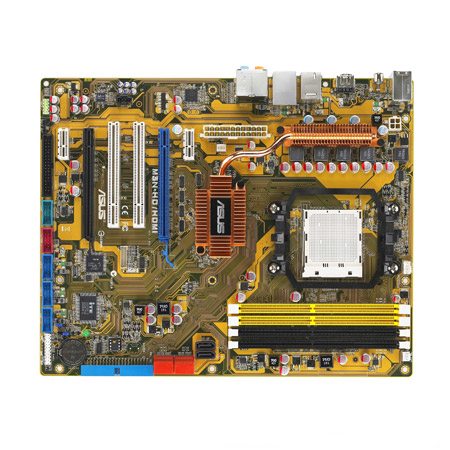

ASUS M3N-HD/HDMI Socket AM2 ATX

ASUS M3N-HD/HDMI Socket AM2 ATX

Model M3N-HD/HDMIPart no. 90-MIB3J0-G0EAY00ZEAN 610839160624

50 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 0+1, 5, JBOD
  • Maximum graphics card memory512 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 0+1, 5, JBOD
Maximum graphics card memory
512 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
M3N-HD/HDMI
Part numbers
90-MIB3J0-G0EAY00Z, M3N-HD/HDMI, 90-MIB3J0-G0AAY00Z
EAN / UPC
610839160624, 4719543160626
Also known as
ASUS M3N-HD/HDMI Socket AM2 ATX

Specifications

50 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM2

Memory

Number of memory slots4
ECC сompatibilityECC & Non-ECC
Maximum internal memory8 GB

Storage controllers

RAID levels0, 1, 0+1, 5, JBOD

Graphics

Maximum graphics card memory512 MB

Internal I/O

USB 2.0 connectors3
Number of SATA connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of COM connectors1
Number of IEEE1394 connectors1

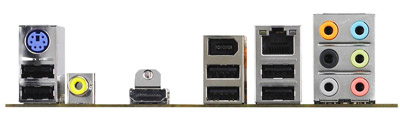

Rear panel I/O ports

USB 2.0 ports quantity6
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Networking featuresAtheros F1 Gigabit PHY AI NET 2

Features

Motherboard form factorATX
Audio chipRealtek ALC1200
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
PCI slots3

BIOS

BIOS typeAward
BIOS memory size64 Mbit

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes
Bundled softwareExpress Gate Lite, ASUS PC Probe II, ASUS Update, Anti-virus software (OEM)

Other features

Floppy disk drive connectorYes
Graphics controllerNVIDIA GeForce 8 Series
Special featuresD-Sub module, HDMI to DVI connector, Q-Shield, User's manual, 3 in 1 Q-connector
