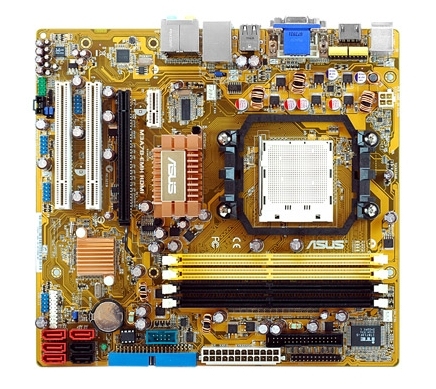

ASUS M3A78-EMH HDMI
Model M3A78-EMH HDMIEAN 610839159918
24 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors8
- Motherboard form factormicro ATX
- Expansion slots1 x PCIe x16 1 x PCIe x1 2 x PCI
- BIOS memory size64 Mbit
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 8
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 x PCIe x16 1 x PCIe x1 2 x PCI
- BIOS memory size
- 64 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- M3A78-EMH HDMI
- Part numbers
- M3A78-EMH HDMI, M3A78-EMHHDMI, 90-MIB3P0-G0EAY00Z, M3A78-EHM HDMI
- EAN / UPC
- 610839159918, 4719543159910, 610839159871
- Also known as
- ASUS M3A78-EMH HDMI AMD 780G Socket AM2 micro ATX
Specifications
24 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 8 |
| Number of SATA connectors | 6 |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD 780G |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCIe x16 1 x PCIe x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 229 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
