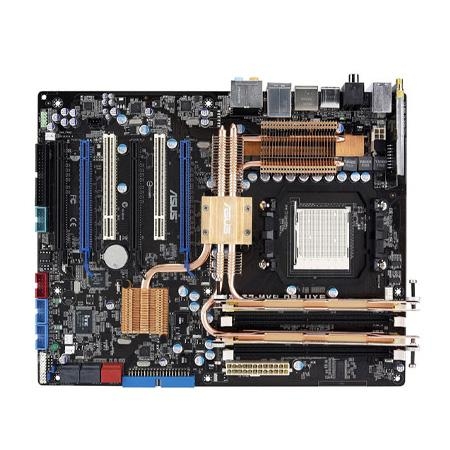

ASUS M3A32-MVP Deluxe/WiFi-AP Motherboard
Model M3A32-MVP Deluxe/WiFi-AP MotherboardPart no. M3A32-MVP DELUXE/WIFI-AP
39 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- USB 2.0 ports quantity6
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- M3A32-MVP Deluxe/WiFi-AP Motherboard
- Part number
- M3A32-MVP DELUXE/WIFI-AP
- Also known as
- ASUS M3A32-MVP Deluxe/WiFi-AP Motherboard Socket AM2 ATX
Specifications
39 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Overclocking features | - ASUS AI NOS - vDIMM - vCore - vChipset - SFS - ASUS C.P.R |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 4 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | 8 Mb Flash ROM AMI BIOS PnP DMI 2.0 WfM 2.0 SM BIOS 2.3 ACPI 2.0a ASUS EZ Flash 2 ASUS CrashFree BIOS 3 |
