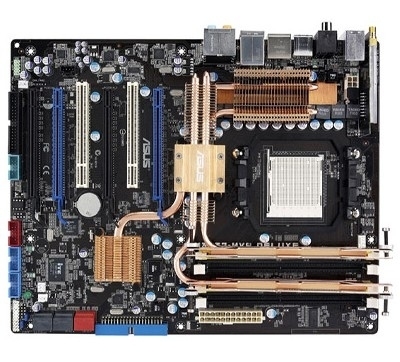

ASUS M3A32-MVP Deluxe/WiFi-AP
Model M3A32-MVP Deluxe/WiFi-APPart no. 90-MIB210-G0EAY00ZEAN 610839157426
44 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1
- USB 2.0 connectors2
- USB 2.0 ports quantity6
- Networking featuresGigabit Ethernet, Wi-Fi
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Networking features
- Gigabit Ethernet, Wi-Fi
- Brand
- ASUS
- Category
- Motherboard
- Model
- M3A32-MVP Deluxe/WiFi-AP
- Part number
- 90-MIB210-G0EAY00Z
- EAN / UPC
- 610839157426, 4719543157428
- Also known as
- ASUS M3A32-MVP Deluxe/WiFi-AP Socket AM2 ATX
Specifications
44 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet, Wi-Fi |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 2000/XP/Vista |
| Overclocking features | - AI NOS - SFS - ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 4 x PCIe x16 + ATI CrossFireX 2 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe II ASUS Update ASUS AI Suite ASUS WiFi-AP Solo Wizard |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66 |
| Controller interface type | Serial ATA II |
| Floppy disk drive connector | Yes |
