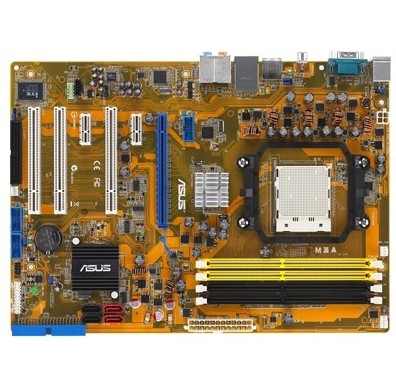

ASUS M3A AMD 770 Socket AM2 ATX
Model M3APart no. 90-MIB2Q0-G0EAY0GZEAN 4719543156698
39 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1
- USB 2.0 connectors3
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1
- USB 2.0 connectors
- 3
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- M3A
- Part numbers
- 90-MIB2Q0-G0EAY0GZ, 90-MIB2Q0-G0AAY0GZ, M3A, 90-MIB2Q0-G0EAY00Z
- EAN / UPC
- 4719543156698, 610839156696
- Also known as
- ASUS M3A AMD 770 Socket AM2 ATX
Specifications
39 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Overclocking features | SFS ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCIe x16 2 x PCIe x1 3 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 218 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66 |
| Controller interface type | Serial ATA II |
| Floppy disk drive connector | Yes |
| Special features | - ASUS AI Gear 2 - ASUS AI Nap - ASUS Q-Fan 2 - ASUS Q-Shield - ASUS Q-Connector - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 |
