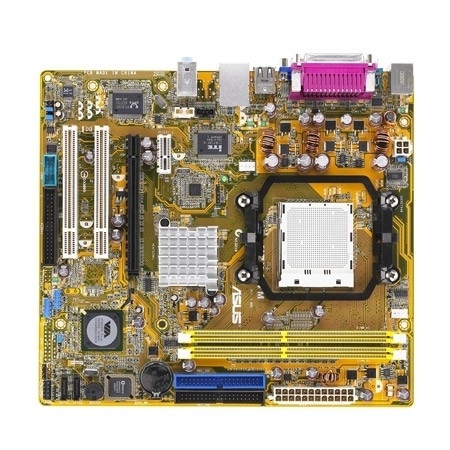

ASUS M2V-TVM motherboard Socket AM2 micro ATX
Model M2V-TVMEAN 610839141968
35 specifications
- Processor manufacturerAMD
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking featuresFast Ethernet
- Motherboard form factormicro ATX
- BIOS memory size32 Mbit
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- Fast Ethernet
- Motherboard form factor
- micro ATX
- BIOS memory size
- 32 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2V-TVM
- Part numbers
- M2V-TVM, M2V-TVM?REFURB
- EAN / UPC
- 610839141968
- Also known as
- ASUS M2V-TVM motherboard Socket AM2 micro ATX
Specifications
35 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC655 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express x16 1x PCI Express x1 2x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers Anti-Virus Software ASUS LiveUpdate |
Other features
| Specification | Value |
|---|---|
| Graphics controller | VIA DeltaChrome GPU |
| Special features | ASUS EZ Flash ASUS MyLogo2 |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, PXE, RPL, WOR by PME |
