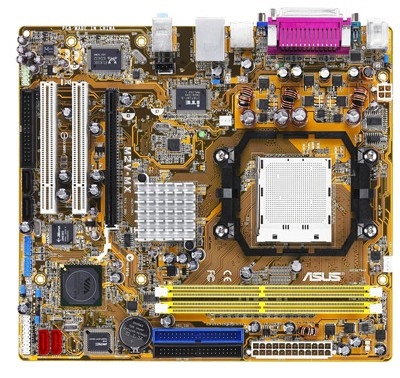

ASUS M2V-MX motherboard Socket AM2 micro ATX
Model M2V-MXPart no. 90-MIB095-G0EAY00ZEAN 4719543150016
37 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, JBOD
- USB 2.0 ports quantity4
- Motherboard form factormicro ATX
- Expansion slots1x PCI Express x16 2x PCI
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, JBOD
- USB 2.0 ports quantity
- 4
- Motherboard form factor
- micro ATX
- Expansion slots
- 1x PCI Express x16 2x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2V-MX
- Part numbers
- 90-MIB095-G0EAY00Z, M2V-MX, 90-MIB090-G0EAYZ
- EAN / UPC
- 4719543150016, 4719543145142, 610839145140, 610839150014
- Also known as
- ASUS M2V-MX motherboard Socket AM2 micro ATX
Specifications
37 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Processor system buses supported | 2000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express x16 2x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers Anti-Virus (OEM) ASUS LiveUpdate |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Serial ATA II |
| Controller interface type | UltraDMA 133/100/66/33 |
| Special features | ASUS EZ Flash 2 ASUS Crashfree BIOS 2 C.P.R. Q-Fan2 ASUS MyLogo |
| Manageability features | WfM 2.0, DMI 2.0, WOL PME, PXE, RPL, WOR PME |
