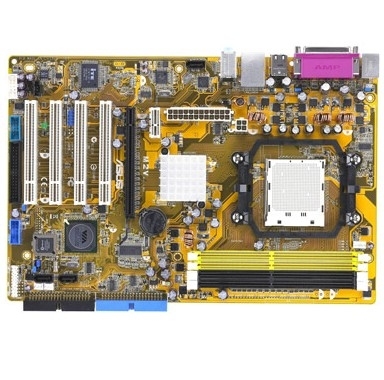

ASUS M2V motherboard Socket AM2 ATX
Model M2VPart no. 90-MIB070-G0EAYGZEAN 610839138203
38 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
- BIOS memory size32 Mbit
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- BIOS memory size
- 32 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2V
- Part numbers
- 90-MIB070-G0EAYGZ, M2V?REFURB, 90-MIB070-G0UAYGZ, 90-MIB070-G0EAYKZ, M2V
- EAN / UPC
- 610839138203, 4719543138205
- Also known as
- ASUS M2V motherboard Socket AM2 ATX
Specifications
38 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
| Processor system buses supported | 2000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 3 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC660 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express x16 1x PCI Express x1 4x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 205 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II Anti-Virus ASUS LiveUpdate |
Other features
| Specification | Value |
|---|---|
| Controller interface type | Ultra ATA 133/100/66/33 |
| Floppy disk drive connector | Yes |
| Special features | ASUS CrashFree BIOS 3 ASUS O.C. Profile ASUS Q-Fan2 ASUS EZ Flash ASUS MyLogo2 SFS |
| Manageability features | WfM 2.0, DMI 2.0, WOL PME, WOR PME, SM Bus |
