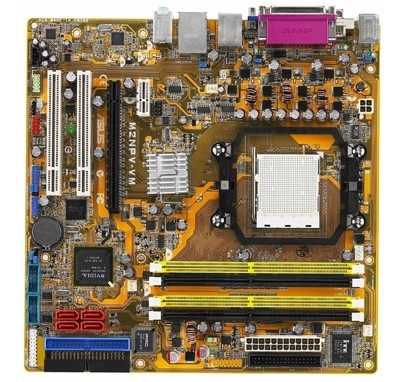

ASUS M2NPV-VM motherboard Socket AM2 micro ATX
Model M2NPV-VMEAN 610839137893
37 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- Networking featuresGigabit Ethernet
- Motherboard form factormicro ATX
- BIOS memory size32 Mbit
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- micro ATX
- BIOS memory size
- 32 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2NPV-VM
- Part number
- M2NPV-VM
- EAN / UPC
- 610839137893, 4719543137895
- Also known as
- ASUS M2NPV-VM motherboard Socket AM2 micro ATX
Specifications
37 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | ADI AD1986A |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express x16 1x PCI Express x1 2x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | NVIDIA MediaShield RAID ASUS PC Probe II ASUS LiveUpdate AMD Cool ' n' Quiet Anti-virus (OEM) |
Other features
| Specification | Value |
|---|---|
| GAME/MIDI connector | Yes |
| Graphics controller | GeForce 6 GPU |
| Special features | ASUS Q-Fan 2 ASUS My Logo ASUS CrashFreeBIOS2 ASUS EZ Flash 2 |
| Manageability features | WfM 2.0, DMI 2.0, WOL PME, WOR, PXE |
