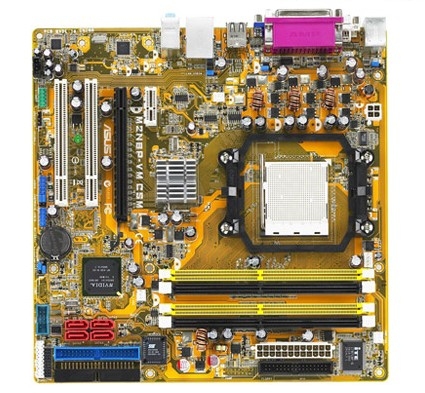

ASUS M2NBP-VM CSM
Model M2NBP-VM CSMEAN 610839141876
42 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1
- Graphics cardGeForce 6
- USB 2.0 connectors2
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1
- Graphics card
- GeForce 6
- USB 2.0 connectors
- 2
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2NBP-VM CSM
- Part numbers
- M2NBP-VM CSM, 90-MIB0R0-G0EAYZ, 90-MIBORO-EAYZ
- EAN / UPC
- 610839141876, 4719543141878
- Also known as
- ASUS M2NBP-VM CSM motherboard Socket AM2 micro ATX
Specifications
42 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Graphics card | GeForce 6 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | ADI AD1986A |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Overclocking features | SFS ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express x16 1x PCI Express x1 2x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II ASUS LiveUpdate Anti-Virus AMD Cool ' n' Quiet |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Serial ATA II |
| Controller interface type | UltraDMA 133/100/66/33 |
| Floppy disk drive connector | Yes |
| Special features | ASUS Q-Fan 2 ASUS My Logo ASUS CrashFreeBIOS2 ASUS EZ Flash 2 |
| Manageability features | WfM 2.0, DMI 2.0, WOL PME, WOR, PXE, Chassis Intrusion |
| RAID controller type | NVIDIA nForce 430B |
