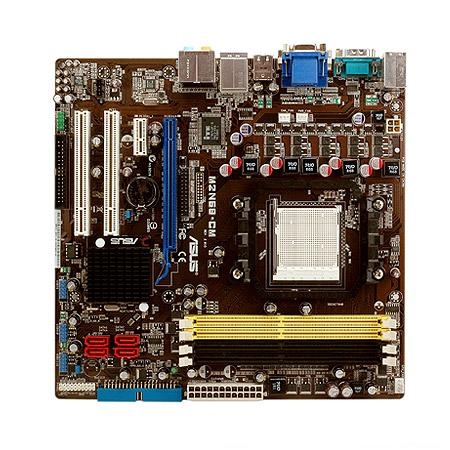

ASUS M2N68-CM Socket AM2 micro ATX
Model M2N68-CMPart no. 90-MIB5K0-G0EAY0GZEAN 4719543152850
44 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 5, 10
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Networking featuresGigabit LAN
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Networking features
- Gigabit LAN
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N68-CM
- Part numbers
- 90-MIB5K0-G0EAY0GZ, M2N68-CM, M2N68CM
- EAN / UPC
- 4719543152850, 4719543162996
- Also known as
- ASUS M2N68-CM Socket AM2 micro ATX
Specifications
44 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | VIA VT1708 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista Windows XP Windows 2000 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 228.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | Nvidia Geforce 7 |
| Manageability features | WfM 2.0, DMI 2.0, WOR by Ring, PME Wake Up,WO_USB,WO_KB/MS |
