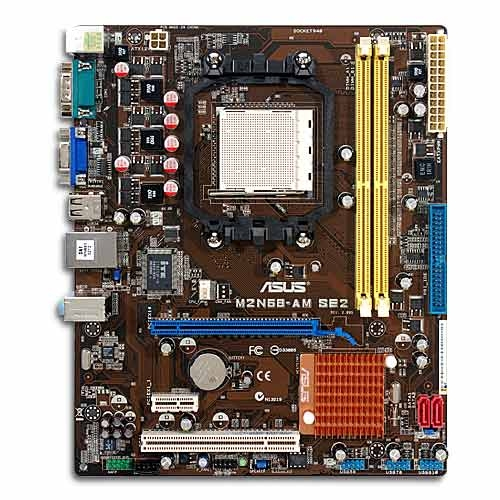

ASUS M2N68-AM SE2
Model M2N68-AM SE2Part no. 90MIB7Y0G0EAY0KZEAN 4719543169216
42 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1
- Maximum graphics card memory256 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1
- Maximum graphics card memory
- 256 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N68-AM SE2
- Part numbers
- 90MIB7Y0G0EAY0KZ, 90-MIB7Y1-G0ECY0GZ, 90-MIB7Y0-G0EAY0KZ, M2N68-AM SE2
- EAN / UPC
- 4719543169216, 610839169214, 4719543169230
- Also known as
- ASUS M2N68-AM SE2 Socket AM2 micro ATX
Specifications
42 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Compatible processor series | AMD Phenom, AMD Phenom FX |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

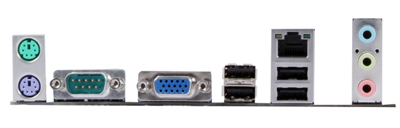

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra DMA 133 / 100 |
| Controller interface type | Serial ATA 3Gb/s |
What people say
Reviews & ratings
ASUS M2N68-AM SE2
No reviews yet
Be the first to tell others how ASUS M2N68-AM SE2 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M2N68-AM SE2

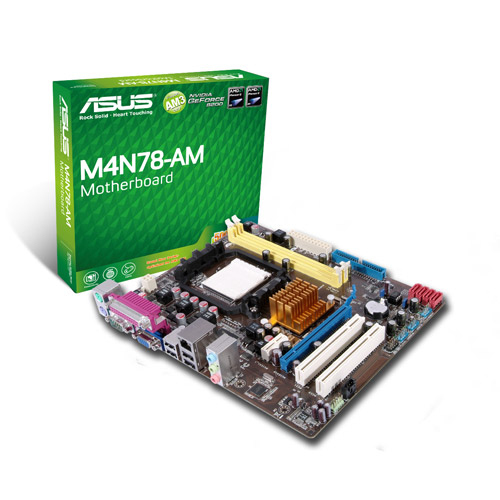

All motherboard comparisons- ASUS M2N68-AM SE2 vsASUS M4N78-AM Socket AM3+ micro ATXCompare specs

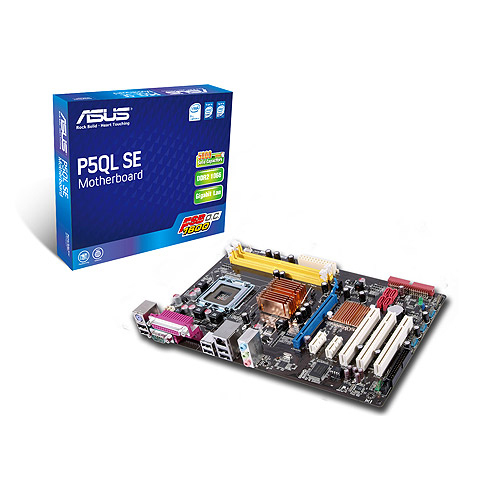

- ASUS M2N68-AM SE2 vsASUS P5QL SE/C/SICompare specs
- ASUS M2N68-AM SE2 vsASUS Z8NA-D6 Intel® 5500 Socket B (LGA 1366) ATXCompare specs
- ASUS M2N68-AM SE2 vsASUS Z8PE-D18 Intel® 5520 Socket B (LGA 1366) SSI EEBCompare specs

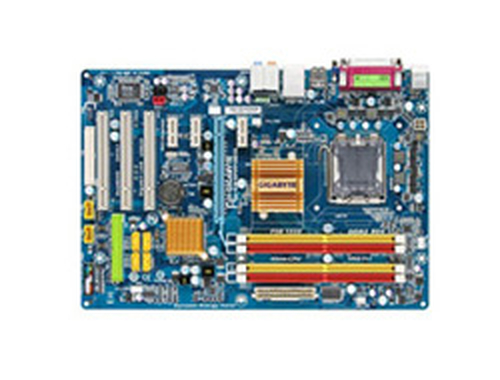

- ASUS M2N68-AM SE2 vsGIGABYTE GA-EP41-UD3L motherboard LGA 775 (Socket T) ATXCompare specs

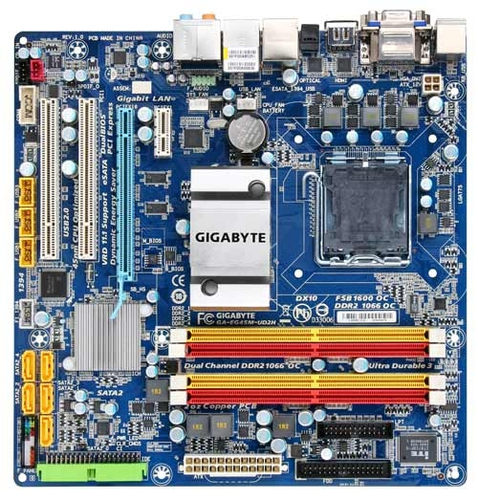

- ASUS M2N68-AM SE2 vsGIGABYTE GA-EG45M-UD2H (rev. 1.0)Compare specs
