ASUS M2N68-AM Socket AM2 micro ATX
Model M2N68-AMPart no. 90-MIB640-G0EAY0GZEAN 4719543165058
36 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 5, 10, JBOD
- Maximum graphics card memory256 MB
- USB 2.0 connectors6
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 5, 10, JBOD
- Maximum graphics card memory
- 256 MB
- USB 2.0 connectors
- 6
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N68-AM
- Part numbers
- 90-MIB640-G0EAY0GZ, M2N68-AM, 90-MIB641-G0ECY00Z
- EAN / UPC
- 4719543165058, 4719543136317
- Also known as
- ASUS M2N68-AM Socket AM2 micro ATX
Specifications
36 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8211CL |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 222 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | Nvidia Geforce 7 |
| Manageability features | WfM 2.0, DMI 2.0, WOR @ Ring, PME Wake Up, WO_USB, WO_KB/MS |
What people say
Reviews & ratings
ASUS M2N68-AM Socket AM2 micro ATX
No reviews yet
Be the first to tell others how ASUS M2N68-AM Socket AM2 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M2N68-AM Socket AM2 micro ATX
All motherboard comparisons- ASUS M2N68-AM Socket AM2 micro ATX vsASUS P5N73-CM LGA 775 (Socket T) micro ATXCompare specs
- ASUS M2N68-AM Socket AM2 micro ATX vsASUS P5Q-E/WiFi-AP LGA 775 (Socket T) ATXCompare specs
- ASUS M2N68-AM Socket AM2 micro ATX vsASUS P5QL-CM LGA 775 (Socket T) micro ATXCompare specs
- ASUS M2N68-AM Socket AM2 micro ATX vsASUS M2N68-VM Socket AM2 micro ATXCompare specs
- ASUS M2N68-AM Socket AM2 micro ATX vsMSI P45 Neo2-FIRCompare specs
- ASUS M2N68-AM Socket AM2 micro ATX vsMSI G43M2 LGA 775 (Socket T) micro ATXCompare specs
- ASUS M2N68-AM Socket AM2 micro ATX vsMSI DKA790GX AMD 790GX Socket AM2 ATXCompare specs

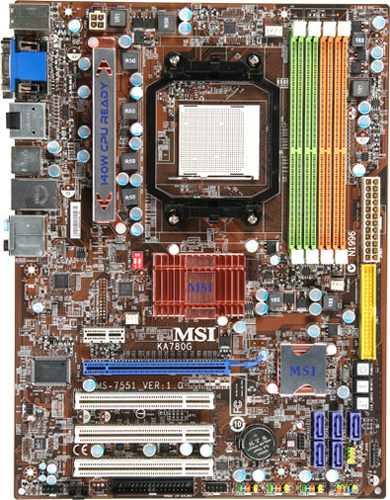

- ASUS M2N68-AM Socket AM2 micro ATX vsMSI KA780G AMD 780G Socket AM2 ATXCompare specs
