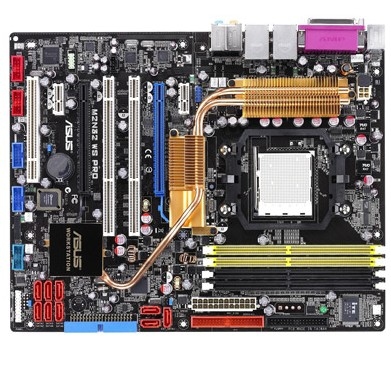

ASUS M2N32 WS Professional
Model M2N32 WS ProfessionalPart no. M2N32 WS PROEAN 610839138371
39 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1, 5, JBOD
- USB 2.0 connectors6
- LAN controllerMarvell 88E1116
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, 5, JBOD
- USB 2.0 connectors
- 6
- LAN controller
- Marvell 88E1116
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N32 WS Professional
- Part number
- M2N32 WS PRO
- EAN / UPC
- 610839138371, 4719543138373
- Also known as
- ASUS M2N32 WS Professional Socket AM2 ATX
Specifications
39 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 9 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E1116 |
| Networking features | Dual Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2x PCI Express x16 2x PCI-X 2x PCI-E x1 1x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers BIOS flash utility under DOS ASUS PC Probe II ASUS Update Anti-Virus Adobe Acrobat Reader 7.0 ASUS AI utility Microsoft Direct X ver 9.0c |
Other features
| Specification | Value |
|---|---|
| Audio output | 8-ch |
| Floppy disk drive connector | Yes |
| Special features | AMD Cool 'n' Quiet Stack Cool 2 Q-Fan 2 AI Nap AI Gear My Logo 3 ASUS AI NET2 CrashFree BIOS 3 EZ Flash 2 Q-Connector ASUS AI Quiet |
| Manageability features | WOL PME, WOR PME, PXE, AI NET2 |
