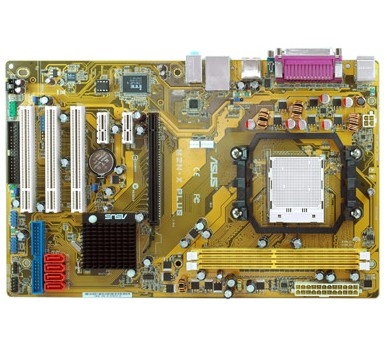

ASUS M2N-X Plus
Model M2N-X PlusPart no. M2N-X PLUSEAN 610839156993
36 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 0+1, 5, JBOD
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- Networking featuresFast Ethernet
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1, 5, JBOD
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Networking features
- Fast Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N-X Plus
- Part numbers
- M2N-X PLUS, 90-MIB2H0-G0EAY00Z
- EAN / UPC
- 610839156993, 4719543156995
- Also known as
- ASUS M2N-X Plus Socket AM2 ATX
Specifications
36 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Overclocking features | SFS ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 2 x PCI Express x1 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 193 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra DMA 133/100/66/33 |
| Controller interface type | Serial ATA II |
| Floppy disk drive connector | Yes |
| Manageability features | WOR @ Ring, WOL/WOR @ PME, PXE |
