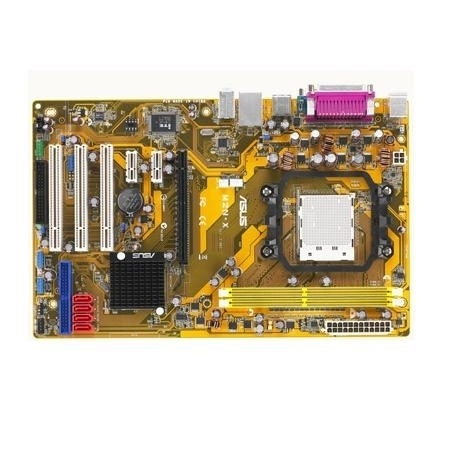

ASUS M2N-X Socket AM2 ATX
Model M2N-XPart no. 90-MIB0Z0-G0EAY00ZEAN 610839143306
30 specifications
- Processor manufacturerAMD
- Number of memory slots2
- Number of SATA connectors4
- Motherboard form factorATX
- BIOS memory size32 Mbit
- Width305 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- Number of SATA connectors
- 4
- Motherboard form factor
- ATX
- BIOS memory size
- 32 Mbit
- Width
- 305 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N-X
- Part numbers
- 90-MIB0Z0-G0EAY00Z, M2N-X, 90-MIB0Z0-G0AAY0KZ
- EAN / UPC
- 610839143306, 4719543143308
- Also known as
- ASUS M2N-X Socket AM2 ATX
Specifications
30 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | No |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/XP/2000 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 2 x PCI Express x1 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 193 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II ASUS Update NVIDIA MediaShield RAID |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 100/66/33 |
| Controller interface type | Serial ATA |
| EZ plug connector | Yes |
| Floppy disk drive connector | Yes |
| Manageability features | WOR (Ring), WOL/WOR (PME), PXE |
