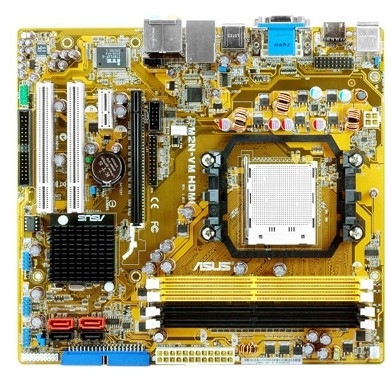

ASUS M2N-VM HDMI
Model M2N-VM HDMIPart no. 90-MIB310-G0EAY00ZEAN 610839156689
41 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 5, 10, JBOD
- USB 2.0 connectors3
- Networking featuresGigabit Ethernet
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10, JBOD
- USB 2.0 connectors
- 3
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N-VM HDMI
- Part numbers
- 90-MIB310-G0EAY00Z, M2N-VM HDMI
- EAN / UPC
- 610839156689, 4719543156681
- Also known as
- ASUS M2N-VM HDMI Socket AM2 micro ATX
Specifications
41 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 2000/XP/Vista |
| Overclocking features | SFS ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 1 x PCI Express x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 224 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100 |
| Controller interface type | Serial ATA II |
| Floppy disk drive connector | Yes |
| Special features | ASUS MyLogo2 ASUS CrashFreeBIOS2 ASUS EZ Flash2 ASUS Q-Fan |
| Manageability features | WfM 2.0, DMI 2.0, WOR @ Ring, PME WU |
