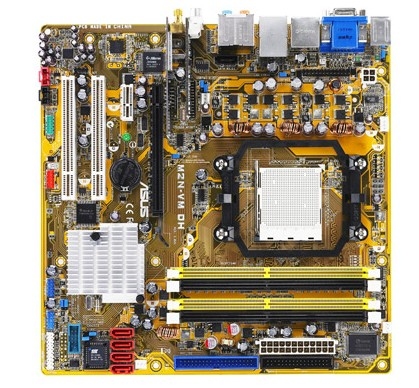

ASUS M2N-VM DH

ASUS M2N-VM DH

Model M2N-VM DHEAN 610839141159

43 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 0+1, 5, JBOD
  • Graphics cardGeForce 6100
  • USB 2.0 connectors2
  • Networking featuresGigabit Ethernet, Wireless LAN
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 0+1, 5, JBOD
Graphics card
GeForce 6100
USB 2.0 connectors
2
Networking features
Gigabit Ethernet, Wireless LAN
Brand
ASUS
Category
Motherboard
Model
M2N-VM DH
Part numbers
M2N-VM DH, 90-MIB0P0-G0EAYZ
EAN / UPC
610839141159, 4719543141151
Also known as
ASUS M2N-VM DH motherboard Socket AM2 micro ATX

Specifications

43 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM2
Maximum number of SMP processors1

Memory

Number of memory slots4
Maximum internal memory8 GB

Storage controllers

RAID levels0, 1, 0+1, 5, JBOD

Graphics

Graphics cardGeForce 6100

Internal I/O

USB 2.0 connectors2
Number of SATA connectors5
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of COM connectors1
Number of IEEE1394 connectors1

Rear panel I/O ports

USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
Headphone outputs1
Microphone inYes

Network

Networking featuresGigabit Ethernet, Wireless LAN

Features

Motherboard form factormicro ATX
Audio chipADI AD1988
Audio output channels7.1 channels
Power source typeATX

Expansion slots

Expansion slots1x PCI Express x16 1x PCI Express x1 2x PCI

BIOS

BIOS memory size32 Mbit

Weight & dimensions

Width245 mm
Depth245 mm

Packaging content

Bundled softwareDrivers ASUS DH Remote Application ASUS WiFi-AP Solo Wizard Nvidia MediaShield RAID ASUS PC Probe 2 AMD Cool ' n' Quiet Utility ASUS LiveUpdate Utility Anti-Virus software (OEM)

Other features

Controller 2nd interface typeNVIDIA nForce 430
Controller interface typeJMicron JMB363
Floppy disk drive connectorYes
Special featuresASUS WiFi-AP Solo Asus DH Remote ASUS MP3-In ASUS C.P.R. Q-Fan2 MyLogo2 EZ Flash 2
I/O ports1x WiFi-AP Solo antenna
Manageability featuresWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, Chassis Intrusion
