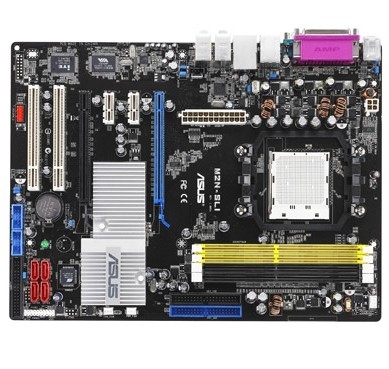

ASUS M2N-SLI motherboard Socket AM2 ATX
Model M2N-SLIEAN 683728242091
41 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1, 5, JBOD
- USB 2.0 connectors2
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, 5, JBOD
- USB 2.0 connectors
- 2
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N-SLI
- Part numbers
- M2N-SLI, 90-MIB320-G0EAY0GZ
- EAN / UPC
- 683728242091, 4719543156490, 610839156498
- Also known as
- ASUS M2N-SLI motherboard Socket AM2 ATX
Specifications
41 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows XP/Vista |
| Overclocking features | ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI Express x16 2 x PCI Express x1 2 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 218 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Yes |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | ASUS EZ DIY ASUS Q-Fan 2 ASUS MyLogo2 |
| Manageability features | WOL @ PME, WOR @ PME, PXE |
What people say
Reviews & ratings
ASUS M2N-SLI motherboard Socket AM2 ATX
No reviews yet
Be the first to tell others how ASUS M2N-SLI motherboard Socket AM2 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M2N-SLI motherboard Socket AM2 ATX
All motherboard comparisons- ASUS M2N-SLI motherboard Socket AM2 ATX vsASUS P5E3 WS PROCompare specs
- ASUS M2N-SLI motherboard Socket AM2 ATX vsASUS P5G-MX LGA 775 (Socket T) micro ATXCompare specs
- ASUS M2N-SLI motherboard Socket AM2 ATX vsASUS Maximus ExtremeCompare specs

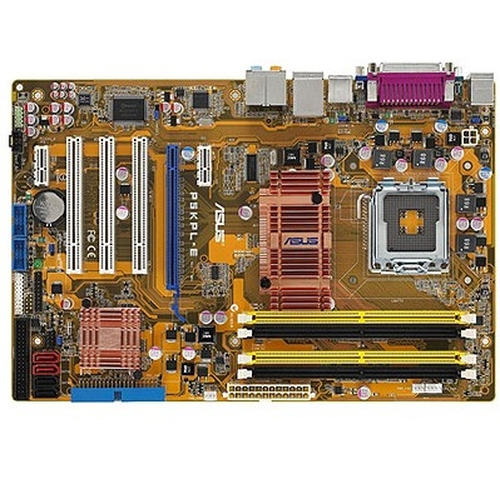

- ASUS M2N-SLI motherboard Socket AM2 ATX vsASUS P5KPL-E motherboard LGA 775 (Socket T) ATXCompare specs
