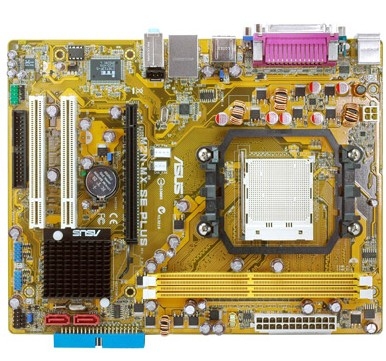

ASUS M2N-MX SE PLUS
Model M2N-MX SE PLUSPart no. 90-MIB2I0-G0EAY0GZEAN 5051749346671
37 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1
- USB 2.0 ports quantity4
- Networking featuresFast Ethernet
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1
- USB 2.0 ports quantity
- 4
- Networking features
- Fast Ethernet
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N-MX SE PLUS
- Part numbers
- 90-MIB2I0-G0EAY0GZ, 90-MIB2I0-G0EAY0KZ, M2N-MX SE PLUS, 90-MIB2I0-G0EAY00Z
- EAN / UPC
- 5051749346671, 610839156986, 4719543156988
- Also known as
- ASUS M2N-MX SE PLUS motherboard Socket AM2 micro ATX
Specifications
37 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 194 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66/33 |
| Controller interface type | Serial ATA II |
| Special features | ASUS Q-Fan ASUS My Logo ASUS CrashFreeBIOS2 ASUS EZ Flash |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR, PXE |
What people say
Reviews & ratings
ASUS M2N-MX SE PLUS
No reviews yet
Be the first to tell others how ASUS M2N-MX SE PLUS works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS M2N-MX SE PLUS
All motherboard comparisons- ASUS M2N-MX SE PLUS vsASUS P5KPL-E motherboard LGA 775 (Socket T) ATXCompare specs

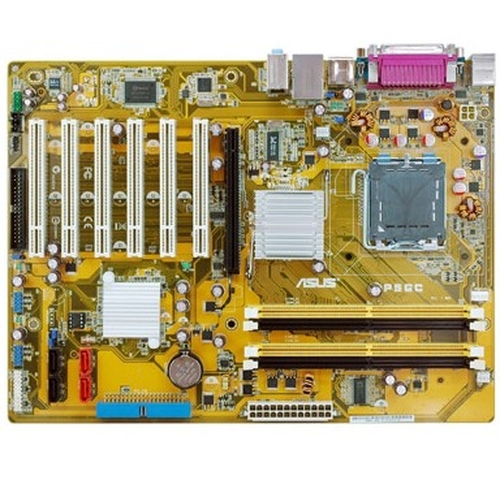

- ASUS M2N-MX SE PLUS vsASUS P5GC motherboard LGA 775 (Socket T) ATXCompare specs
