ASUS M2N-MX SE
Model M2N-MX SE
25 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0
- USB 2.0 connectors4
- Motherboard form factormicro ATX
- Expansion slots1 x PCI Express x16 2 x PCI
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0
- USB 2.0 connectors
- 4
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 x PCI Express x16 2 x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N-MX SE
- Part numbers
- M2N-MX SE, 90-MIB1V0-G0EAY0GZ, 90-MIB1V0-G0EAYOGZ
- Also known as
- ASUS M2N-MX SE motherboard Socket AM2 micro ATX
Specifications
25 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Number of chassis fan connectors | 1 |

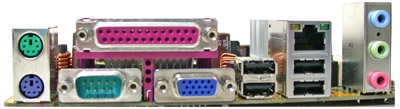

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 194 mm |
Other features
| Specification | Value |
|---|---|
| Graphics controller | GeForce 6100 GPU |
