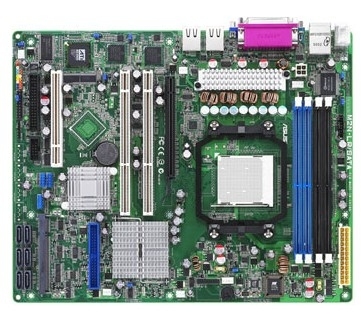

ASUS M2N-LR motherboard Socket AM2 ATX
Model M2N-LREAN 610839141678
30 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 5, 10, JBOD
- Maximum graphics card memory32 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10, JBOD
- Maximum graphics card memory
- 32 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N-LR
- Part number
- M2N-LR
- EAN / UPC
- 610839141678, 4719543141670, 6108391416784
- Also known as
- ASUS M2N-LR motherboard Socket AM2 ATX
Specifications
30 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
| Graphics card | ES1000 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Broadcom BCM5721 |
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 1x 64-bit/133GHz PCI-X 1x 64-bit/133GHz PCI-X 1x 32-bit/33MHz PCI |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra-ATA 100/133 |
| Controller interface type | Serial ATA II |
| Floppy disk drive connector | Yes |
| Special features | Smart Fan II |
| Manageability features | ASWM2.0 |
