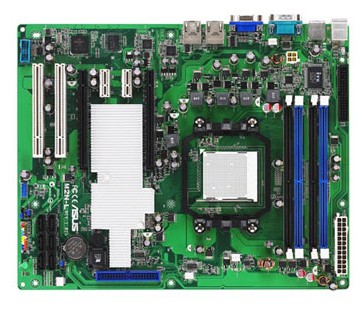

ASUS M2N-L Socket AM2 ATX
Model M2N-LPart no. 90-MSVBN0-G0UAY00ZEAN 4719543159408
27 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1, JBOD
- Maximum graphics card memory32 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, JBOD
- Maximum graphics card memory
- 32 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N-L
- Part numbers
- 90-MSVBN0-G0UAY00Z, M2N-L
- EAN / UPC
- 4719543159408
- Also known as
- ASUS M2N-L Socket AM2 ATX
Specifications
27 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI 32bit/33 MHz 1x PCI 32bit/33 MHz 1x PCI-E x16 1x PCI-E x1 1x PCI-E x1 1x PCI-E x16 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraATA-100/133 |
| Controller interface type | Serial ATA I/II |
| Floppy disk drive connector | Yes |
| Graphics controller | XGI Z9s |
| Manageability features | ASWM 2.0 |
