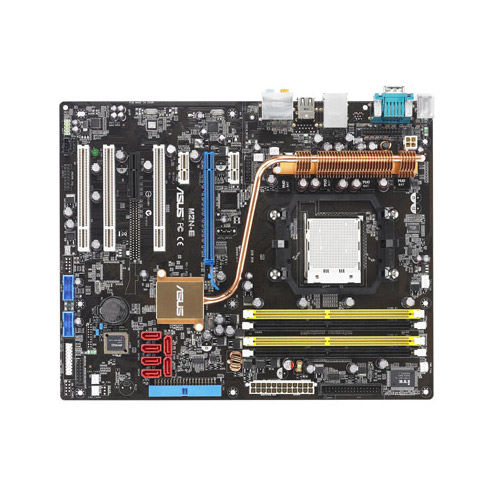

ASUS M2N-E motherboard NVIDIA nForce 570 Ultra Socket AM2+ ATX
Model M2N-EEAN 4719543140345
58 specifications
- Processor manufacturerAMD
- Supported memory typesDDR2-SDRAM
- Supported storage drive interfacesSATA
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR2-SDRAM
- Supported storage drive interfaces
- SATA
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N-E
- Part numbers
- M2N-E, M2N-E?REFURB, 90-MIB0K0-G0UAYZ, 90-MIB0K0-G0EAY
- EAN / UPC
- 4719543140345, 610839140343
- Also known as
- ASUS M2N-E motherboard NVIDIA nForce 570 Ultra Socket AM2+ ATX
Specifications
58 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2+ |
| Compatible processor series | AMD Phenom, AMD Phenom FX |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR2-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 533,667,800 MHz |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | NVIDIA nForce 570 Ultra |
| Audio chip | ADI AD1988 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
| Expansion slots | 1x PCI Express x16 1x PCI Express x4 2x PCI Express x1 3x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Azalia Digital Header (ADH) connector | 1 |
| Floppy disk drive connector | Yes |
| Special features | ASUS EZ DIY AI Nap AI Gear ASUS Crystal Sound |
| Manageability features | WOL, WOR, Wake on WLAN, Chasis Intrusion, PXE |
