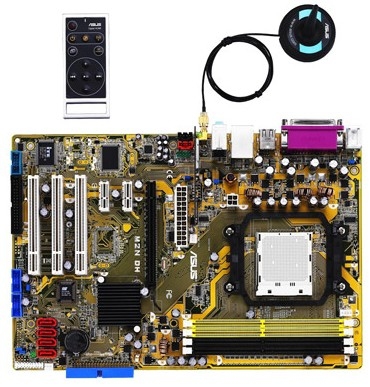

ASUS M2N DH
Model M2N DHEAN 610839142637
35 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- Networking featuresGigabit Ethernet, Wireless LAN
- Motherboard form factorATX
- BIOS memory size32 Mbit
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- Gigabit Ethernet, Wireless LAN
- Motherboard form factor
- ATX
- BIOS memory size
- 32 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2N DH
- Part number
- M2N DH
- EAN / UPC
- 610839142637, 4719543142639
- Also known as
- ASUS M2N DH motherboard Socket AM2 ATX
Specifications
35 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet, Wireless LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-Express x16 2x PCI-Express x1 3x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 206 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | SFS ASUS C.P.R. ASUS O.C. -FAN2 Q-Connector ASUS CrashFree BIOS3 ASUS EZ Flash2 ASUS Fanless Design ASUS MyLogo ASUS WiFi-AP Solo Asus DH Remote ASUS MP3-In |
| Manageability features | WOL by PME, WOR by PME, Chassis Intrusion, PXE |
