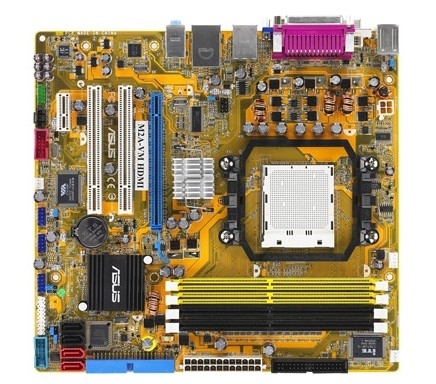

ASUS M2A-VM/HDMI Socket AM2 micro ATX
Model M2A-VM/HDMIPart no. M2A-VM HDMIEAN 610839149643
44 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1
- Maximum graphics card memory256 MB
- USB 2.0 connectors3
- Networking featuresGigabit Ethernet
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1
- Maximum graphics card memory
- 256 MB
- USB 2.0 connectors
- 3
- Networking features
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2A-VM/HDMI
- Part numbers
- M2A-VM HDMI, 90-MIB1M0-G0EAY0KZ, 90-MIB1M0-G0EAY0K, 90-MIB1M0-G0AAY0KZ
- EAN / UPC
- 610839149643, 4719543149645
- Also known as
- ASUS M2A-VM/HDMI Socket AM2 micro ATX
Specifications
44 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Overclocking features | SFS ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express x16 1x PCI Express x1 2x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 229 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II ASUS LiveUpdate Anti Virus (OEM) |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100 |
| Controller interface type | Serial ATA I/II |
| Special features | ASUS MyLogo2 ASUS CrashFreeBIOS3 ASUS EZ Flash2 ASUS Q-Fan ASUS O.C Profile |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by PME |
