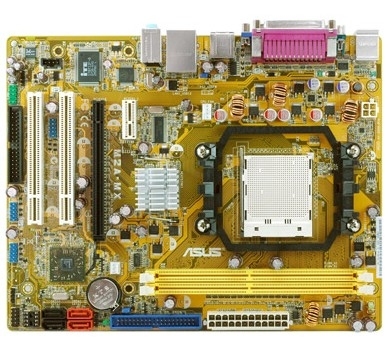

ASUS M2A-MX Socket AM2 micro ATX
Model M2A-MXPart no. 90-MIB2L0-G0EAY00ZEAN 610839157020
33 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 0+1
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2A-MX
- Part numbers
- 90-MIB2L0-G0EAY00Z, M2A-MX
- EAN / UPC
- 610839157020, 4719543157022
- Also known as
- ASUS M2A-MX Socket AM2 micro ATX
Specifications
33 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 1 x PCI Express x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 194 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Yes |
Other features
| Specification | Value |
|---|---|
| Special features | ASUS Q-Fan ASUS C.P.R. ASUS My Logo ASUS CrashFreeBIOS2 ASUS EZ Flash |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR, PXE |
