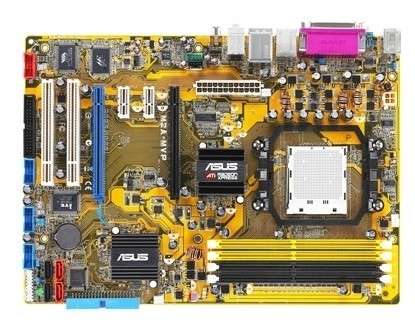

ASUS M2A-MVP AMD 480X CrossFire Socket AM2 ATX
Model M2A-MVPPart no. 90-MIB1H0-G0EAY00ZEAN 610839148028
44 specifications
- Processor manufacturerAMD
- ECC сompatibilityECC & Non-ECC
- RAID levels0
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- LAN controllerMarvell 88E8001
Overview
- Processor manufacturer
- AMD
- ECC сompatibility
- ECC & Non-ECC
- RAID levels
- 0
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- LAN controller
- Marvell 88E8001
- Brand
- ASUS
- Category
- Motherboard
- Model
- M2A-MVP
- Part numbers
- 90-MIB1H0-G0EAY00Z, M2A-MVP
- EAN / UPC
- 610839148028, 4719543148020
- Also known as
- ASUS M2A-MVP AMD 480X CrossFire Socket AM2 ATX
Specifications
44 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E8001 |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 480X CrossFire |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2x PCI Express 2x PCI Express x1 2x PCI 2.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 218 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe 2 ASUS LiveUpdate Utility Anti Virus |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66/33 |
| Controller interface type | Serial ATA I/II |
| Floppy disk drive connector | Yes |
| Special features | ASUS MyLogo ASUS EZ Flash 2 ASUS CrashFree BIOS 3 ASUS O.C. Profile ASUS Q-Fan2 ASUS C.P.R |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
