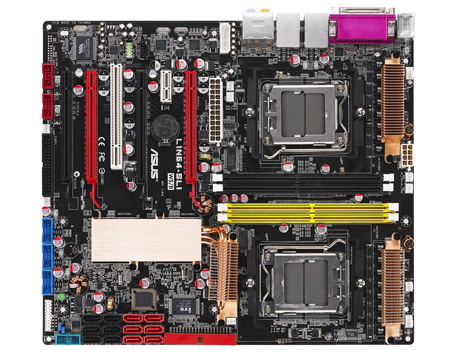

ASUS L1N64-SLI WS/B
Model L1N64-SLI WS/BEAN 610839158225
36 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels1, 0+1, 5, JBOD
- LAN controllerMarvell 88E1116
- Motherboard form factorExtended ATX
- PCI Express x1 slots1
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 1, 0+1, 5, JBOD
- LAN controller
- Marvell 88E1116
- Motherboard form factor
- Extended ATX
- PCI Express x1 slots
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- L1N64-SLI WS/B
- Part numbers
- L1N64-SLI WS/B, 90-MSVC50-G0AAY10Z
- EAN / UPC
- 610839158225, 4719543158227
- Also known as
- ASUS L1N64-SLI WS/B motherboard Socket F (1207) Extended ATX
Specifications
36 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket F (1207) |
| Processor system buses supported | 2000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 1, 0+1, 5, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 12 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E1116 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | Extended ATX |
| Audio chip | ADI AD1988B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 267 mm |
Other features
| Specification | Value |
|---|---|
| Special features | Stack Cool 2 Fanless Design |
