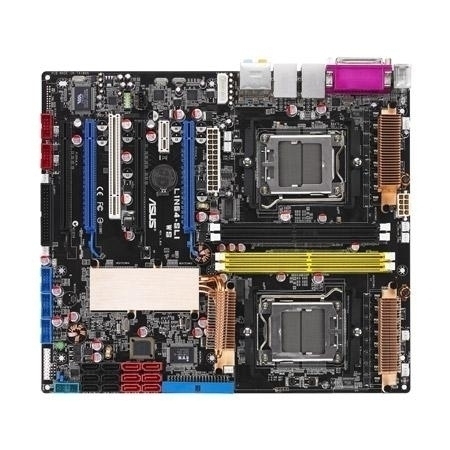

ASUS L1N64-SLI WS
Model L1N64-SLI WSPart no. 90-MIB160-G0EAY00ZEAN 610839148400
31 specifications
- Processor manufacturerAMD
- Number of memory slots4
- S/PDIF out connectorYes
- Networking features2 x Marvell 88E1116 PHY
- Motherboard form factorATX
- BIOS memory size64 Mbit
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- S/PDIF out connector
- Yes
- Networking features
- 2 x Marvell 88E1116 PHY
- Motherboard form factor
- ATX
- BIOS memory size
- 64 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- L1N64-SLI WS
- Part numbers
- 90-MIB160-G0EAY00Z, L1N64-SLI WS, 90-MIB160-G0AAY00T
- EAN / UPC
- 610839148400, 4719543148402
- Also known as
- ASUS L1N64-SLI WS Socket L1 ATX
Specifications
31 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket L1 |
| Maximum number of SMP processors | 2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 2 x Marvell 88E1116 PHY |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988B |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 4 x PCI Express x16 (x16, x8, x16, x8) 1 x PCI-E x 1 1 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 267 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100 |
| Controller interface type | Serial ATA |
| EZ plug connector | Yes |
| Floppy disk drive connector | Yes |
| Manageability features | WOL (PME), WOR (PME), PXE, AI NET2 |
